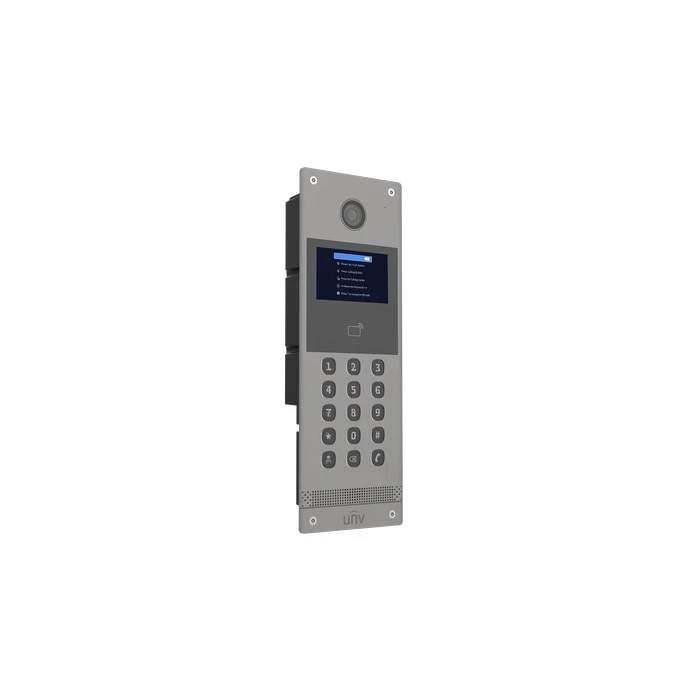

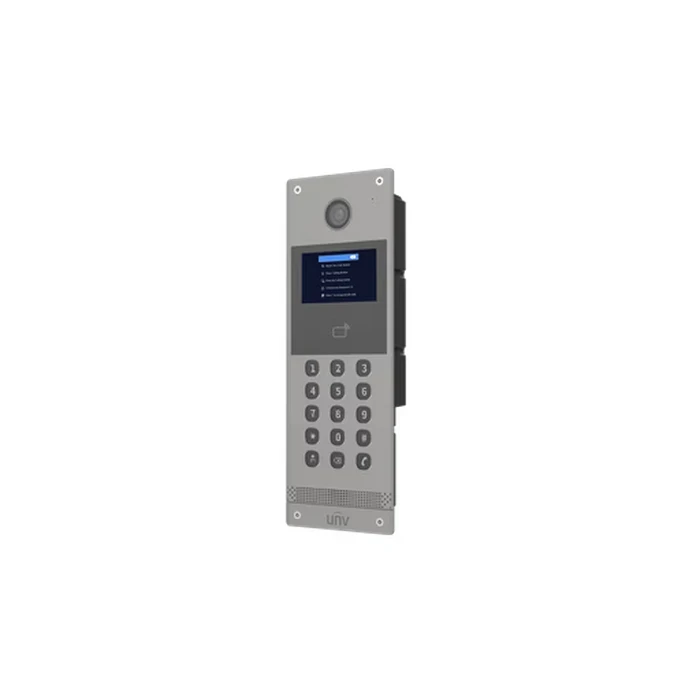

UNV Apartment Video Door Station with 3.97" Screen, 15 Braille Buttons, 500 Indoor Station Capacity, 10,000 IC Reader, PoE & NDAA Compliance | Model No. OEU-301S-HMKA
| Specification : | |
| Brand Profile | Uniview (UNV) |
| Model Code | OEU-301S-HMKA |
| Product Category | Multi-Tenant Apartment Door Station |
| Operating System | Linux OS |
| Screen Display & Keypad | 3.97-Inch Screen / 15 Physical Buttons with Braille (Includes Management Call Button) |
| Camera Lens & FOV | 2.0 MP Camera / Diagonal 127.9°, Horizontal 106.9°, Vertical 56.9° |
| Night Vision & Image Enhancement | Adaptive IR Light Compensation / Digital WDR (DWDR) |
| Card & Station Capacity | 10,000 IC Cards / Links Up to 500 Indoor Stations |
| Audio Quality & Codecs | Omnidirectional Mic & Speaker / Active Noise Suppression, Echo Cancellation, AGC |
| Network Interface | 1x 100Mbps Ethernet Port (Supports IEEE 802.3af PoE) |
| Door Lock & I/O Interfaces | 2x Door Locks (Electric Lock/Door Magnet), 4x IO Inputs, 2x IO Outputs, 1x RS485, 1x Tamper Button |
| Housing & Environmental Ratings | Metal Casing / IP65 Weatherproof / IK08 Vandal-Proof / Operating Temp: -40°C to 60°C |
| Power Supply & Consumption | PoE (IEEE 802.3af) Max 10.73W / DC 12V ± 25% Max 8.62W |
| Compliance Standard | NDAA Compliant |
| Dimensions & Weight | 125 mm × 358 mm × 53 mm / Weight: 2.10 kg |
| Ideal Applications | Apartment Buildings, Multi-Family Residential Complexes, Gated Communities, and Office Towers |
-
Supports Up to 500 Indoor Stations: Purpose-built for multi-tenant apartment complexes and office towers, linking up to 500 indoor monitor stations.
-
15 Braille Buttons & 3.97" Display Screen: Features a 3.97-inch screen paired with a 15-button physical keypad with Braille embossing for accessible calling and direct management center dialing.
-
10,000 IC Card Reader & 2.0MP DWDR Camera: Built-in 13.56 MHz card reader holds up to 10,000 credentials, complemented by a 2MP DWDR camera with adaptive IR night vision (127.9° diagonal FOV).
-
IP65 Weatherproof & IK08 Vandal-Proof Metal Casing: Durable metal body built to endure tough outdoor conditions (-40°C to 60°C) with IP65 weather resistance, IK08 impact protection, and anti-tamper alarm support.
-
Standard PoE, Dual Lock Control & NDAA Compliant: Operates on standard IEEE 802.3af PoE (or DC 12V), featuring 2 door lock outputs, 4 IO inputs, 2 IO outputs, RS485, active noise cancellation, and full NDAA compliance.
