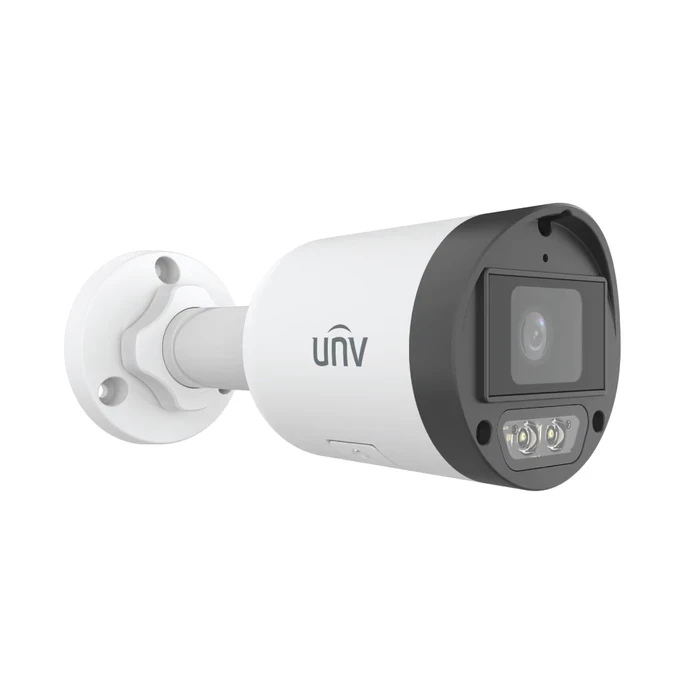

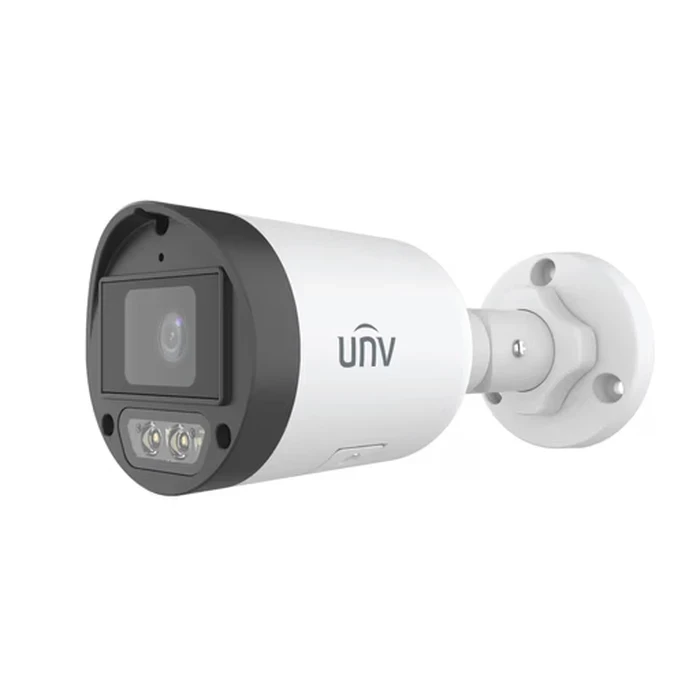

UNV IPC2124LB-AF40K-DL2 4.0 MP ColorHunter Bullet Camera | 1440P Quad HD Smart Dual-Light Vision | Uniview IP67 Weatherproof PoE Built-in Mic Mini Bullet IP CCTV
| Specification : | |
| Brand Profile | Uniview (UNV Technologies) |
| Model Code Matrix | IPC2124LB-AF40K-DL2 Series |
| Product Category | Smart Dual-Light ColorHunter Mini Bullet Network IP Cameras |
| Optical Capture Sensor | 1/3.0" Progressive Scan CMOS Core Sensor Unit |
| Maximum Image Resolution | 4 Megapixels | 1440P Quad HD ($$2560 \times 144$ Pixels) |
| Lens Focal Parameters | 4.0 mm Fixed Focal Length Area | F1.6 Large Fixed Iris Aperture Array |
| Field Angle Range Coverage | Horizontal: 77.4° | Vertical: 41.9° | Diagonal: 90.5° |
| Integrated Audio Stream | Built-in High-Fidelity Microphone Network Sync (G.711U / G.711A Compression) |
| Smart AI Analytics Profile | Ultra Motion Detection, Basic Motion Detection, Audio Detection, Tampering Alarm |
| DORI Geometric Range | Detect: 90.0m | Observe: 36.0m | Recognize: 18.0m | Identify: 9.0m |
| Night Vision Technology | Hybrid Architecture: Automated Warm White Light LED + Smart IR Arrays |
| Illumination Distance Limit | Infrared IR: Up to 30 Meters | Supplemental Warm White Light: Up to 30 Meters |
| Low Light Performance Mode | Preserves Color Data Down to 0.01 Lux (F1.6, AGC On) | 0.00 Lux with White Light |
| Day and Night Mode Shift | Mechanical Automatic and Configurable Switching System (ICR Filter Core) |
| Video Streams Framework | Dual Video Streams: Main Stream up to 1440P@25fps | Sub Stream up to 30fps |
| Bandwidth Compressing Engine | Ultra 265, H.265, H.264 High-Efficiency Compressing Logic + Smart U-code |
| Edge Storage Interface | MicroSD Card Slot Interface Architecture (Supports up to 512 GB Data Cards) |
| Network Storage Protocols | ANR (Automatic Network Replenishment Setup), NAS (NFS Support) |
| Network Port Connection | 1 x RJ45 10M/100M Base-TX Self-Adaptive Fast Ethernet Terminal |
| Chassis Component Material | Innovative High-Dissipation Graphene Compound and Durable Engineering Plastic |
| Mechanical Ingress Safety | Weatherproof IP67 Certified Dustproof and Waterproof Shell | 4 KV Surge Shield |
| Electrical Input Bounds | DC12V (±25%) Power Barrel Coaxial Plug | PoE (IEEE 802.3af Standard) |
| Power Overhead Consumption | Energy Efficient Operations: Maximum 4.5 Watts under Full Load |
| Chassis Adjustment Scope | 3-Axis Adjustment Matrix (Pan: 0°~360° | Tilt: 0°~90° | Rotate: 0°~360°) |
| Physical Outer Dimensions | 162.1 mm × 66.5 mm × 66.6 mm (6.3" × 2.6" × 2.6") (L × W × H) |
| Hardware Net Weight | Lightweight High-Dissipation Frame Structure Body: 210 Grams (0.46 Pounds) |
-
Intelligent Smart Dual-Light Technology: Combines an efficient 850nm infrared light array with a warm white LED panel, projecting up to 30m night monitoring distance while transitioning target color profiles automatically upon alert detection.
-
Vivid 4MP Quad HD Video with F1.6 Optics: Driven by a responsive 1/3.0" progressive scan CMOS engine that captures crisp $2560 \times 1440$ resolution telemetry at up to 25 frames per second.
-
Corridor-Focused 4.0mm Fixed Lens: Precision F1.6 aperture wide-angle lens provides a balanced 77.4° horizontal field angle, maximizing pixel density down long pathways, driveways, and fence perimeters.
-
Massive 512 GB Local Edge MicroSD Storage Slot: Supports local data backup and automated failover edge protection through an integrated MicroSD slot accommodating storage cards up to 512 GB.
-
Rugged Graphene-Plastic IP67 Outdoor Chassis: High-dissipation composite framework features 4 KV industrial surge isolation protection and is fully sealed to operate outdoors under rain, dust, and temperature drops down to -30°C.
