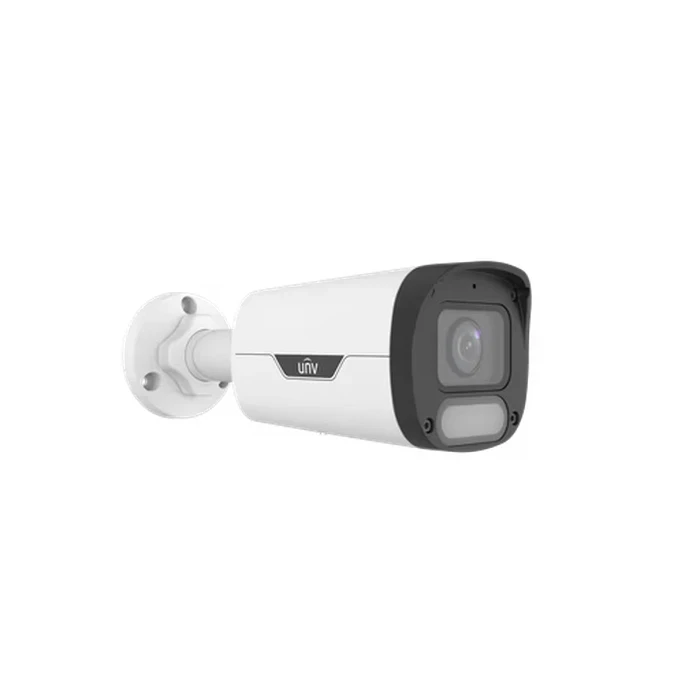

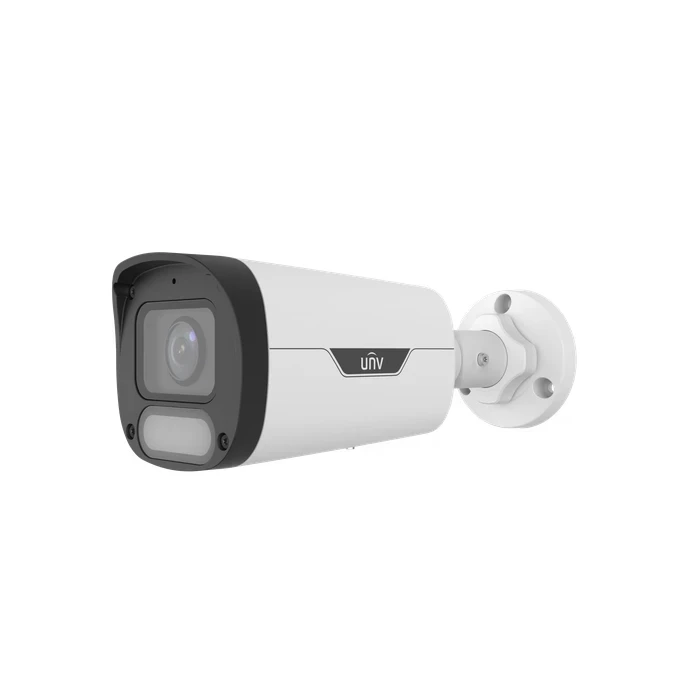

UNV IPC2314LE-ADF40K-WP-L 4.0 MP ColorHunter Bullet Network Camera | 1440P Quad HD Wise-ISP Deep-Vision | Uniview IP67 Weatherproof PoE Built-in Mic Outdoor CCTV
| Specification : | |
| Brand Profile | Uniview (UNV Technologies) |
| Model Code Matrix | IPC2314LE-ADF40K-WP-L |
| Product Technology Range | ColorHunter Series with Wise-ISP Deep-Learning Integration |
| Optical Capture Sensor | 1/1.8" Large-Format Progressive Scan CMOS Sensor Unit |
| Maximum Image Resolution | 4 Megapixels | 1440P Quad HD (2560 × 1440 Progressive Pixels) |
| Lens Focal Length | 4.0 mm Fixed Focal Length Area | Extreme F1.0 Large Fixed Iris Array |
| Field of View (FOV) Scope | Horizontal: 92.1° | Vertical: 49.0° | Diagonal: 108.3° |
| Integrated Audio Stream | Built-in High-Fidelity Microphone Network Sync (G.711U / G.711A Compression) |
| Smart AI Analytics Profile | Ultra Motion Detection (UMD), Basic Motion Detection, Audio Detection, Tampering |
| DORI Geometric Range | Detect: 62.1m | Observe: 24.8m | Recognize: 12.4m | Identify: 6.2m |
| Night Vision Supplemental Light | Smart Warm White Light LED Array (Uniform Non-Glare Intelligent Support) |
| Illumination Distance Limit | Supplemental Warm White LED: Up to 30 Meters (98.4 ft) Range Scope |
| Minimum Illumination Index | Ultra-Low Light Color Mode: 0.0003 Lux (F1.0 Lens Open, AGC On) |
| Video Streams Framework | Dual Video Streams: Main Stream up to 1440P@25fps | Sub Stream up to 30fps |
| Bandwidth Compressing Engine | Ultra 265, H.265, H.264 (Baseline/Main/High Profile), MJPEG + Smart U-code |
| Edge Storage Interface | MicroSD Card Slot Interface Architecture (Supports up to 512 GB Local Data Cards) |
| Network Storage Protocols | ANR (Automatic Network Replenishment Setup), NAS (NFS Support) |
| Network Port Connection | 1 x RJ45 10M/100M Base-TX Self-Adaptive Fast Ethernet Terminal |
| Mechanical Ingress Safety | Weatherproof IP67 Certified Dustproof and Waterproof Shell | 4 KV Surge Shield |
| Electrical Input Bounds | DC12V (±25%) Power Barrel Coaxial Plug | PoE (IEEE 802.3af Standard) |
| Power Overhead Consumption | Energy Efficient Operations: Maximum 3.5 Watts under Full Load |
| Chassis Component Material | Innovative Graphene Compound and High-Density Engineering Plastic |
| Chassis Adjustment Scope | 3-Axis Adjustment Matrix (Pan: 0°~360° | Tilt: 0°~90° | Rotate: 0°~360°) |
| Physical Outer Dimensions | 197.8 mm × 73.0 mm × 72.9 mm (7.8" × 2.9" × 2.9") (L × W × H) |
| Hardware Net Weight Mass | Lightweight High-Dissipation Frame Body Weight: 0.30 Kilograms (0.66 lb) |
-
Advanced Wise-ISP AI Low-Light Enhancement: Uses next-generation AI processing algorithms that minimize digital noise and dynamic blur, ensuring rich full-color clarity down to 0.0003 Lux.
-
Massive 1/1.8" CMOS Sensor & F1.0 Lens: Features a premium large-format image sensor and ultra-wide F1.0 aperture optics that continuously capture ambient light for uncompromised night monitoring.
-
Stunning 4MP Quad HD Resolution Telemetry: Driven by a high-density 4.0 Megapixel progressive scan core engine that records sharp 2560 x 1440 pixel resolution video streams at up to 25fps.
-
Corridor-Focused 4.0mm Lens Resolution: Precision optics provide a 92.1° horizontal field angle, focusing pixel density and clarity further down long paths, walkways, and driveway perimeters.
-
Massive 512 GB Local Edge MicroSD Card Slot: Supports long-term data backup and automated failover edge data protection through an integrated MicroSD slot accommodating storage cards up to 512 GB.
