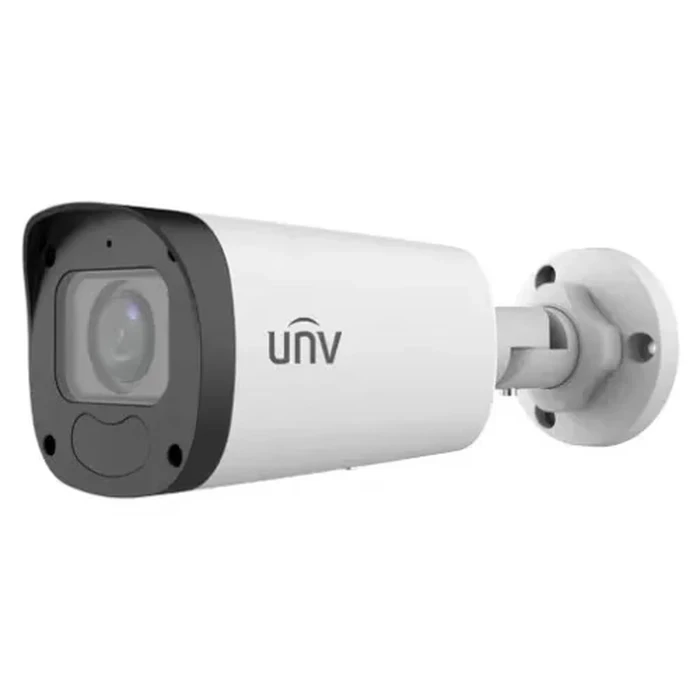

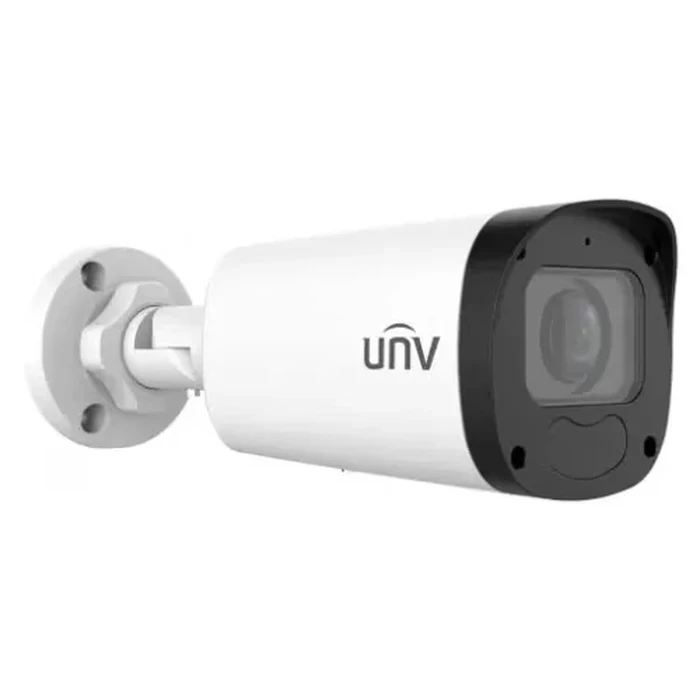

UNV IPC2322LB-ADZK-G 2.0 MP AF Motorized Zoom Lens Bullet Camera | 1080P Full HD 4X Optical Zoom | Uniview IP67 Weatherproof Outdoor Smart IP CCTV
| Specification : | |
| Brand Profile | Uniview (UNV Technologies) |
| Model Code Matrix | IPC2322LB-ADZK-G |
| Product Category | Smart AF Motorized Zoom Bullet Network IP Cameras |
| Optical Capture Sensor | 1/2.7″ 2.0-Megapixel Progressive Scan CMOS Core Unit |
| Maximum Image Resolution | 2 Megapixels | 1080P Full HD ($$1920 \times 108$ Pixels) |
| Lens Focal Parameters | 2.8 ~ 12 mm Motorized Zoom Array | AF Automatic Continuous Focusing |
| Optical Zoom Index | 4X Structural Digital/Mechanical Varifocal Magnification |
| Field Angle Range Coverage | Horizontal: 108.05°~ 32.59° | Vertical: 56.81°~ 18.36° | Diagonal: 111.91°~36.53° |
| Minimum Illumination Index | Colour Mode: 0.005 Lux (F1.6 Lens Open, AGC On) | 0.00 Lux with IR Active |
| Integrated Audio Stream | Built-in High-Fidelity Microphone (G.711U / G.711A Compression Shunt) |
| AI Smart Video Analytics | Cross Line Crossing, Area Intrusion Detection (Human Isolation-based), Motion |
| DORI Range Index (Wide 2.8mm) | Detect: 42.0m | Observe: 16.8m | Recognize: 8.4m | Identify: 4.2m |
| DORI Range Index (Tele 12mm) | Detect: 180.0m | Observe: 72.0m | Recognize: 36.0m | Identify: 18.0m |
| Night Vision Range Limit | Up to 50 Meters (164ft) Range Scope via 850nm Smart IR Array |
| True Wide Dynamic Range | Hardware-Driven 120dB True WDR Technology Core |
| Day and Night Mode Shift | Mechanical IR-Cut Filter with Auto Switch (ICR System Logic) |
| Video Streams Framework | Dual Video Streams: Main Stream up to 1080P@30fps | Sub Stream up to 30fps |
| Bandwidth Compressing Engine | Ultra 265, H.265, H.264 (Baseline / Main / High Profile), MJPEG + Smart U-code |
| Edge Storage Interface | Micro SD Card Slot Architecture (Supports up to 128 GB Edge Archiving) |
| Network Storage Protocols | ANR (Automatic Network Replenishment), NAS (NFS Support) |
| Network Port Connection | 1 x RJ45 10M/100M Base-TX Self-Adaptive Fast Ethernet Terminal |
| Mechanical Ingress Safety | Weatherproof IP67 Certified Dustproof and Waterproof All-Metal Shell |
| Hardware Surge Shunt Rating | Industrial 6KV Surge Protection Isolation Shunt on Input Interfaces |
| Electrical Input Bounds | DC12V (±25%) Coaxial Power Plug | PoE (IEEE 802.3af Standard Configuration) |
| Power Overhead Consumption | Energy Efficient Operations: Maximum 8.5 Watts under Full Load |
| Chassis Dimensions & Mass | 206 mm x 74 mm x 74 mm (8.1” x 2.9” x 2.9”) | Net System Weight: 0.54 Kilograms |
-
Precision 4X Motorized Zoom & Autofocus Lens: Equipped with a 2.8 ~ 12mm adaptive varifocal lens array that self-focuses automatically when zooming via the remote system software interface.
-
Massive 50m Smart IR Extended Night Vision: Features high-output 850nm infrared LEDs providing uniform, long-range illumination up to 50m (164ft) while eliminating close-range overexposure.
-
Proactive Human Body Detection AI Analytics: Embedded with smart edge algorithms designed to track perimeter intrusion and cross-line events filtered by human target identification.
-
Synchronous Environmental Audio with Built-in Mic: Outfitted with an internal high-fidelity microphone that streams clear, real-time synchronized audio directly over the network IP pipeline.
-
IP67 All-Metal Chassis with 6KV Lightning Shield: Encased inside a heavy-duty weatherproof metal housing that provides integrated 6KV surge isolation protection from voltage spikes.
