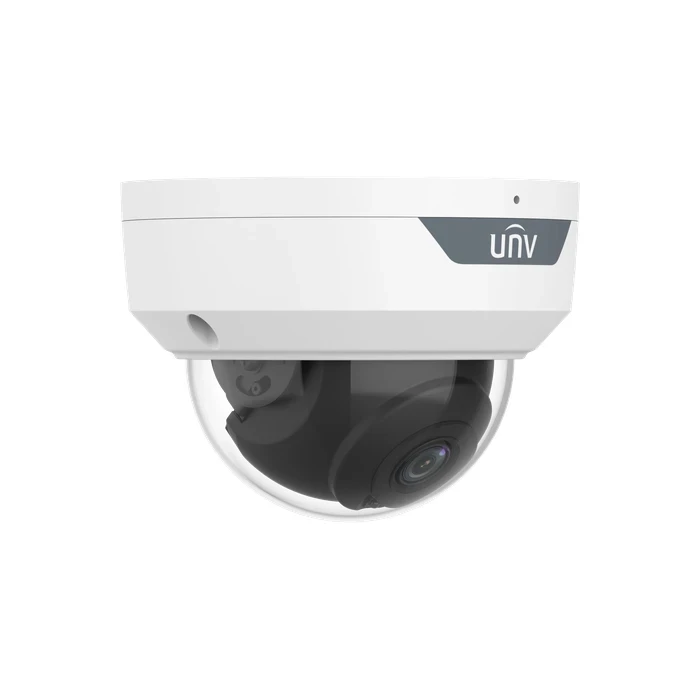

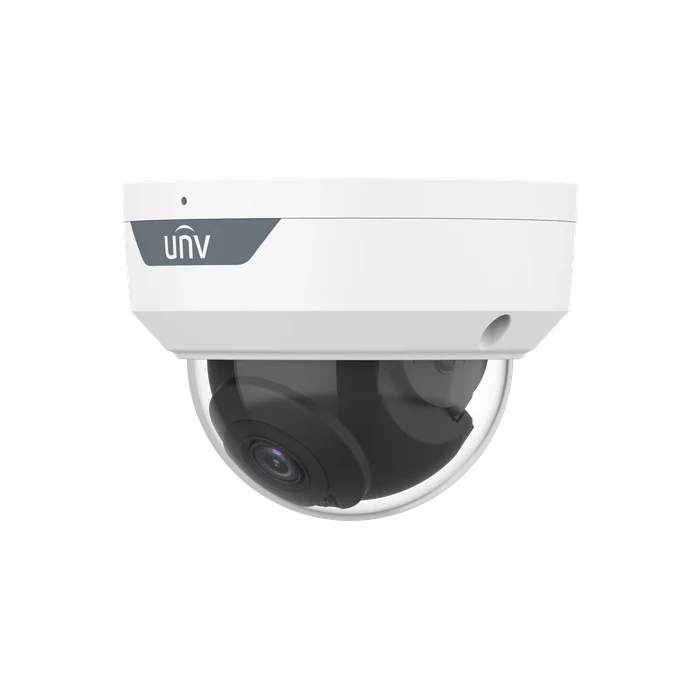

UNV IPC322LB-AF28K-A2 2.0 MP Fixed Iris HD Lens Dome Camera | 1080P Full HD PoE Network System | Uniview IK10 Vandal-Resistant IP67 Built-in Mic IP CCTV
| Specification : | |
| Brand Profile | Uniview (UNV Technologies) |
| Model Code Matrix | IPC322LB-AF28K-A2 |
| Product Category | Vandal-Resistant Smart Fixed IR Dome Network IP Cameras |
| Optical Capture Sensor | 1/3.0" Progressive Scan CMOS Core Sensor Unit |
| Maximum Image Resolution | 2 Megapixels | 1080P Full HD (1920 Horizontal x 1080 Vertical Pixels) |
| Lens Focal Parameters | 2.8 mm Fixed Focal Length Area | F2.0 Fixed Iris Aperture Array |
| Field Angle Range Coverage | Horizontal: 100.0° | Vertical: 56.5° | Diagonal: 114.4° |
| Integrated Audio Stream | Built-in High-Fidelity Microphone (G.711U / G.711A Compression Shunt) |
| AI Smart Video Analytics | Accurate Human Body Detection 2.0, Motion Detection, Audio Detection |
| DORI Geometric Range | Detect: 46.7m | Observe: 18.7m | Recognize: 9.3m | Identify: 4.7m |
| Night Vision Range Limit | Up to 30 Meters (98.4 ft) Range Scope via 850nm Smart IR Array |
| Day and Night Mode Shift | Mechanical IR-Cut Filter with Auto Switch (ICR System Logic) |
| Video Streams Framework | Dual Video Streams: Main Stream up to 1080P@30fps | Sub Stream 640x360 |
| Bandwidth Compressing Engine | Ultra 265, H.265, H.264 (Baseline / Main / High Profile) + Smart U-code |
| Edge Storage Interface | MicroSD Card Slot Interface Architecture (Supports up to 512 GB) |
| Network Interface Port | 1 x RJ45 10M/100M Base-TX Self-Adaptive Fast Ethernet Terminal |
| Mechanical Ingress Safety | IP67 Weatherproof Waterproof Shell | IK10 Vandal-Proof Protection |
| Electrical Input Bounds | DC12V (±25%) Power Feed Coaxial Barrel | PoE (IEEE 802.3af Standard) |
| Power Overhead Consumption | Energy Efficient Operations: Maximum 3.9 Watts under Full Load |
| Chassis Adjustment Scope | 2-Axis Mechanical Configuration Alignment (Pan: 3°~360° | Tilt: 0°~75°) |
| Physical Outer Dimensions | Diameter: Ø111 Millimeters x Height: 82.5 Millimeters (Ø4.4" x 3.2") |
| Hardware Net Weight | Compact Rugged Body Frame Weight: 0.35 Kilograms (0.77 Pounds) |
-
Accurate Human Body Detection 2.0 AI Analytics: Features integrated edge intelligence that isolates human targets, minimizing false event alarms triggered by animals or light transitions.
-
IK10 Vandal-Resistant & IP67 All-Weather Shielding: Encased in a heavy-duty, impact-proof metal and plastic housing built to withstand physical damage and driving rainstorms.
-
Integrated Audio Capture with Built-in Mic: Outfitted with an internal high-fidelity microphone that captures synchronized audio streaming over the network cable.
-
Ultra-Wide 2.8mm Lens with 100° View Scope: Precision F2.0 wide-angle optics deliver a sweeping 100° horizontal coverage angle, maximizing structural perimeter footprint tracking.
-
High-Capacity 512 GB Local MicroSD Edge Storage: Supports on-board edge archiving through an integrated MicroSD card slot up to 512 GB, ensuring data backup during network outages.
