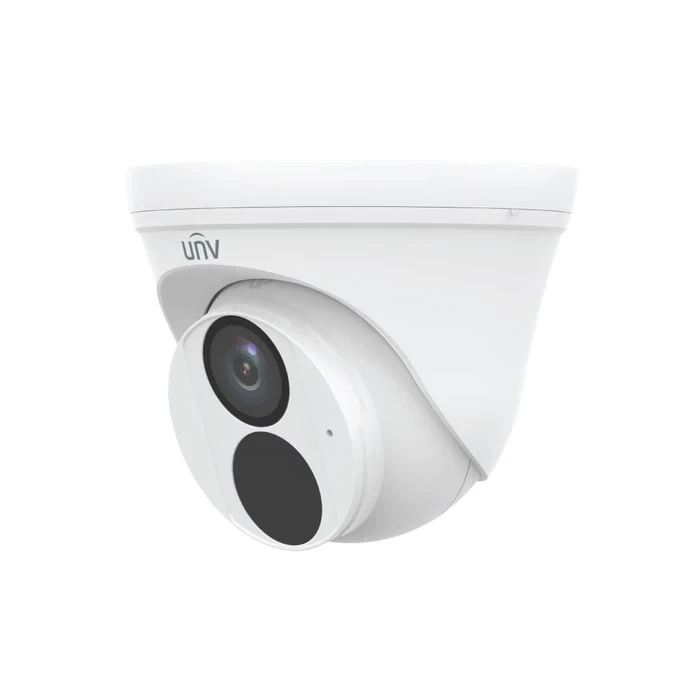

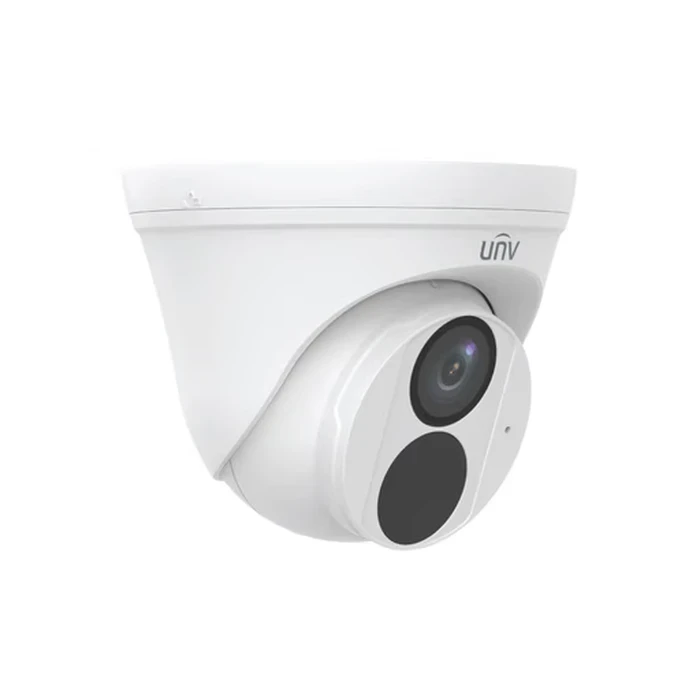

UNV IPC3612LB-ADF28K-G 2.0 MP Fixed Iris HD Lens Eyeball Camera | 1080P Full HD PoE Network System | Uniview IP67 Weatherproof 120dB WDR Built-in Mic Turret IP CCTV
| Specification : | |
| Brand Profile | Uniview (UNV Technologies) |
| Model Code Matrix | IPC3612LB-ADF28K-G |
| Product Line Range | EasyBasic Series |
| Optical Capture Sensor | 1/2.7" Progressive Scan CMOS Core Sensor Unit |
| Maximum Image Resolution | 2 Megapixels | 1080P Full HD (1920 Horizontal x 1080 Vertical Pixels) |
| Lens Focal Parameters | 2.8 mm Fixed Focal Length Area | Fixed Iris Architecture |
| Field of View (FOV) Range | Horizontal: 112.9° | Vertical: 59.1° | Diagonal: 121.2° |
| Minimum Illumination Index | Ultra-Low Light Color Mode: 0.002 Lux | 0.00 Lux with Infrared On |
| Integrated Audio Stream | Built-in High-Fidelity Microphone Network Sync |
| DORI Geometric Range | Detect: 42.0m | Remark: 16.8m | Recognition: 8.4m | Identification: 4.4m |
| Night Vision Range Limit | Up to 30 Meters Range Scope via Smart IR Array |
| Image Enhancement Toolkit | True 120dB WDR, BLC, HLC, AGC, 2D/3D Noise Reduction, Motion Detection, ROI |
| Day and Night Mode Shift | Mechanical Automatic and Configurable Switching System (ICR) |
| Video Stream Framework | Dual Streams: Main Stream up to 1080P@30fps | Extra Stream up to 720P@30fps |
| Bandwidth Compressing Engine | Ultra 265, H.265, H.264 High-Efficiency Compressing Logic |
| Edge Storage Interface | MicroSD Card Slot Interface Architecture (Supports up to 128 GB) |
| Network Interface Port | 1 x RJ45 10M/100M Base-T Self-Adaptive Fast Ethernet Port |
| Mechanical Ingress Safety | Weatherproof IP67 Certified Dustproof and Waterproof Shell | Surge Shield |
| Electrical Input Bounds | DC 12V Grid Feed Configuration (7 Watts Max Draw) | PoE (IEEE 802.3af Standard) |
| Operational Ambient Thermal | -30 °C to 60 °C Extreme Operational Temperature Range |
| Physical Outer Dimensions | Diameter: Φ118 Millimeters x Height: 95 Millimeters |
| Hardware Net Weight | Compact Balanced Structure Body: 300 Grams (0.66 Pounds Net Weight) |
-
Ultra-Wide 112.9° Horizontal Field of View: Premium 2.8mm optics deliver an expansive 112.9° horizontal field angle, maximizing peripheral floor tracking while reducing hidden corners.
-
Brilliant Low-Light Color Performance: Features a highly sensitive 1/2.7" Progressive Scan sensor engine that preserves clear color detail down to a minimum light threshold of 0.002 Lux.
-
True 120dB Wide Dynamic Range (WDR): Integrated dual-exposure WDR balances scenes with harsh backlighting or high glare, preventing dark silhouettes near bright entryways.
-
Integrated Audio Tracking with Built-in Mic: Outfitted with an internal high-fidelity microphone that captures synchronized environmental audio directly over the network IP stream.
-
Weatherproof IP67 Housing with Local Archiving: Fully sealed, surge-protected exterior frame architecture features a built-in MicroSD slot supporting up to 128GB of edge storage.
