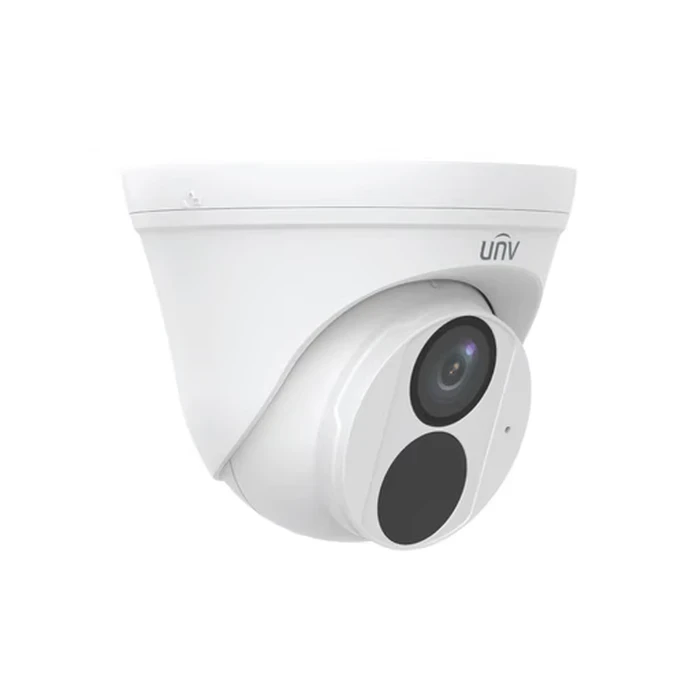

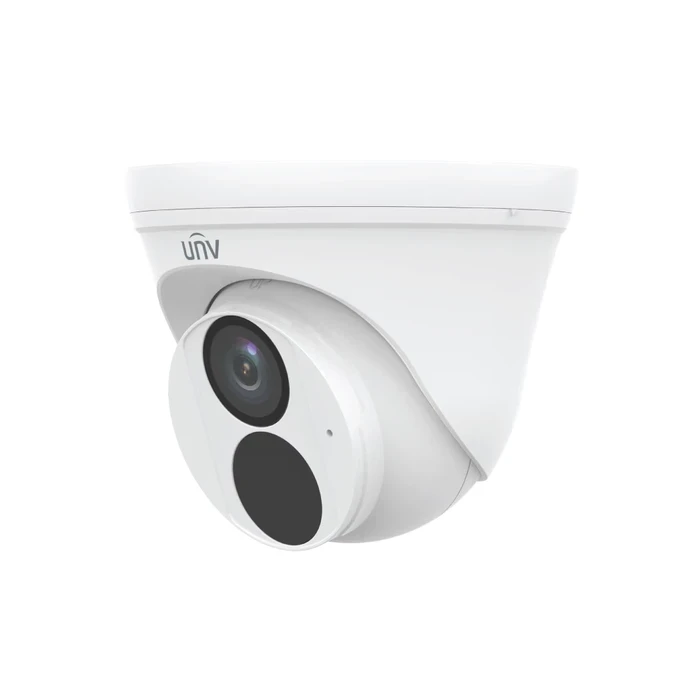

UNV IPC3614LB-AF28-A2 4.0 MP Fixed Iris HD Lens Eyeball Camera | 1440P Quad HD PoE Network System | Uniview IP67 Weatherproof Built-in Mic Turret IP CCTV
| Specification : | |
| Brand Profile | Uniview (UNV Technologies) |
| Model Code Matrix | IPC3614LB-AF28-A2 |
| Product Category | Smart Fixed IR Eyeball Turret Network IP Cameras |
| Optical Capture Sensor | 1/3.0" Progressive Scan CMOS Core Sensor Unit |
| Maximum Image Resolution | 4 Megapixels | 1440P Quad HD ( 2560 \times 144 Pixels) |
| Lens Focal Parameters | 2.8 mm Fixed Focal Length Area | F2.0 Fixed Iris Aperture Array |
| Field Angle Range Coverage | Horizontal: 94.3° | Vertical: 52.2° | Diagonal: 99.6° |
| Integrated Audio Stream | Built-in High-Fidelity Microphone (G.711U / G.711A Compression Shunt) |
| AI Smart Video Analytics | Accurate Human Body Detection 2.0, Motion Detection, Audio Detection |
| DORI Geometric Range | Detect: 63.0m | Observe: 25.2m | Recognize: 12.6m | Identify: 6.3m |
| Night Vision Range Limit | Up to 30 Meters (98.4 ft) Range Scope via 850nm Smart IR Array |
| Day and Night Mode Shift | Mechanical IR-Cut Filter with Auto Switch (ICR System Logic) |
| Video Streams Framework | Dual Video Streams: Main Stream up to 4MP@25fps | Sub Stream 640x360 |
| Bandwidth Compressing Engine | Ultra 265, H.265, H.264 (Baseline / Main / High Profile) + Smart U-code |
| Network Interface Port | 1 x RJ45 10M/100M Base-TX Self-Adaptive Fast Ethernet Terminal |
| Chassis Component Material | Innovative Graphene Compound + High-Density Engineering Plastic |
| Mechanical Ingress Safety | Weatherproof IP67 Certified Dustproof and Waterproof Shell |
| Electrical Input Bounds | DC12V (±25%) Power Feed Coaxial Barrel | PoE (IEEE 802.3af Standard) |
| Power Overhead Consumption | Highly Efficient Operations: Maximum 3.9 Watts under Full Load |
| Chassis Adjustment Scope | 3-Axis Configuration (Pan: 0°~360° | Tilt: 0°~80° | Rotate: 0°~360°) |
| Physical Outer Dimensions | Diameter: Ø118 Millimeters x Height: 95 Millimeters (Ø4.6” x 3.8”) |
| Hardware Net Weight | Lightweight High-Dissipation Frame Body: 0.25 Kilograms (0.55 Pounds) |
-
Accurate Human Body Detection 2.0 AI Analytics: Built with integrated edge-computing intelligence that isolates human movement targets, reducing false alarms triggered by pets or wind.
-
Integrated Audio Tracking with Built-in Mic: Outfitted with an internal high-fidelity microphone that captures synchronized audio telemetry directly over the network IP stream.
-
Innovative Graphene + Plastic Structural Shell: Engineered with a lightweight graphene compound housing that offers excellent thermal dissipation and long-term durability.
-
Ultra-Wide 2.8mm Lens with 94.3° View Scope: Precision F2.0 wide-angle optics deliver a sweeping 94.3° horizontal coverage angle, maximizing structural perimeter tracking.
-
IP67 High-Reliability Weatherproof Protection: Fully sealed chassis built to operate outdoors in driving rain, dust storms, and extreme temperatures from -30°C to 60°C.
