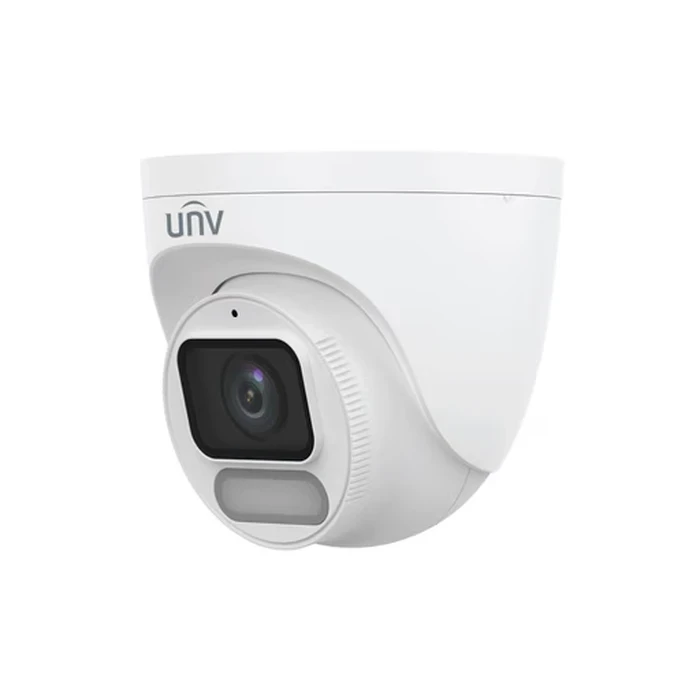

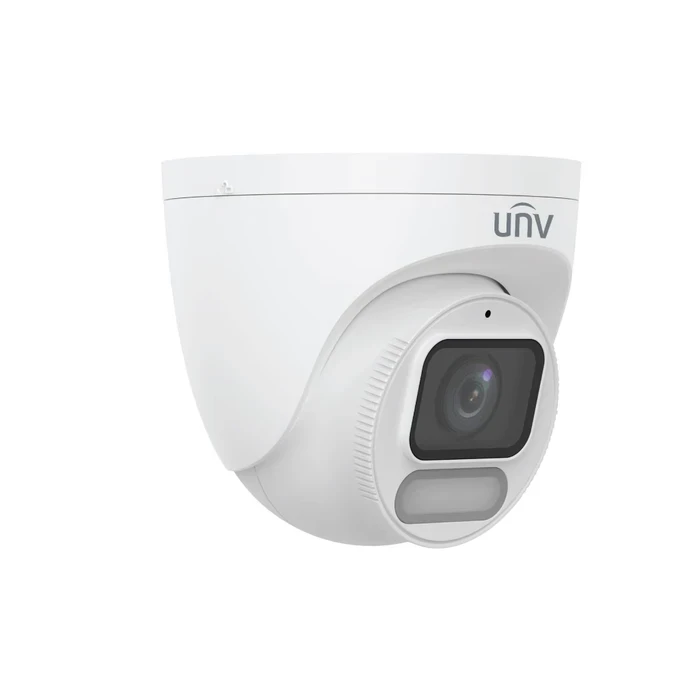

UNV IPC3624LE-ADF28K-WP-L 4.0 MP ColorHunter Dome Network Camera | 1440P Quad HD Wise-ISP Deep-Vision | Uniview IP67 Weatherproof PoE Built-in Mic Eyeball CCTV
| Specification : | |
| Brand Profile | Uniview (UNV Technologies) |
| Model Code Matrix | IPC3624LE-ADF28K-WP-L |
| Product Technology Range | ColorHunter Series with Wise-ISP Deep-Learning Integration |
| Optical Capture Sensor | 1/1.8" Large-Format Progressive Scan CMOS Sensor Unit |
| Maximum Image Resolution | 4 Megapixels | 1440P Quad HD ($$2560 \times 144$ Progressive Pixels) |
| Lens Focal Length | 2.8 mm Fixed Focal Length Area | Extreme F1.0 Large Fixed Iris Array |
| Field of View (FOV) Scope | Horizontal: 107.6° | Vertical: 58.4° | Diagonal: 126.4° |
| Integrated Audio Stream | Built-in High-Fidelity Microphone Network Sync (G.711U / G.711A Compression) |
| Smart AI Analytics Profile | Ultra Motion Detection (UMD), Basic Motion Detection, Audio Detection, Tampering |
| DORI Geometric Range | Detect: 43.5m | Observe: 17.4m | Recognize: 8.7m | Identify: 4.3m |
| Night Vision Supplemental Light | Smart Warm White Light LED Array (Uniform Non-Glare Intelligent Support) |
| Illumination Distance Limit | Supplemental Warm White LED: Up to 30 Meters (98.4 ft) Range Scope |
| Minimum Illumination Index | Ultra-Low Light Color Mode: 0.0003 Lux (F1.0 Lens Open, AGC On) |
| Video Streams Framework | Dual Video Streams: Main Stream up to 1440P@25fps | Sub Stream up to 30fps |
| Bandwidth Compressing Engine | Ultra 265, H.265, H.264 (Baseline/Main/High Profile), MJPEG + Smart U-code |
| Edge Storage Interface | MicroSD Card Slot Interface Architecture (Supports up to 512 GB Local Data Cards) |
| Network Storage Protocols | ANR (Automatic Network Replenishment Setup), NAS (NFS Support) |
| Network Port Connection | 1 x RJ45 10M/100M Base-TX Self-Adaptive Fast Ethernet Terminal |
| Mechanical Ingress Safety | Weatherproof IP67 Certified Dustproof and Waterproof Shell | 4 KV Surge Shield |
| Electrical Input Bounds | DC12V (±25%) Power Barrel Coaxial Plug | PoE (IEEE 802.3af Standard) |
| Power Overhead Consumption | Energy Efficient Operations: Maximum 3.5 Watts under Full Load |
| Chassis Adjustment Scope | 3-Axis Internal Orientation Matrix (Pan: 0°~360° | Tilt: 0°~75° | Rotate: 0°~360°) |
| Physical Outer Dimensions | Diameter: Ø118 Millimeters x Height: 106 Millimeters (Ø4.6" x 4.2") |
| Hardware Net Weight Mass | High-Dissipation Composite Frame Weight: 0.41 Kilograms (0.90 Pounds) |
-
Advanced Wise-ISP AI Image Enhancement: Integrates deep-learning image processing to optimize photon pooling, eliminate motion blur, and suppress noise, delivering rich full-color details down to 0.0003 Lux.
-
Massive 1/1.8" CMOS Sensor & F1.0 Lens: Features a premium large-format image sensor and ultra-wide F1.0 aperture optics that continuously capture ambient light for uncompromised night monitoring.
-
Stunning 4MP Quad HD Resolution Telemetry: Driven by a high-density 4.0 Megapixel progressive scan core engine that records sharp $2560 \times 1440$ pixel resolution video streams at up to 25fps.
-
Ultra-Wide 107.6° Horizontal Field of View: Premium 2.8mm optics offer an expansive 107.6° horizontal view perspective, maximizing peripheral tracking space while minimizing hidden corner zones.
-
IP67 Graphene-Metal Hybrid Housing with 512 GB Storage: Sealed, high-dissipation all-weather enclosure features a built-in MicroSD card slot supporting up to 512 GB for stable local edge archiving.
