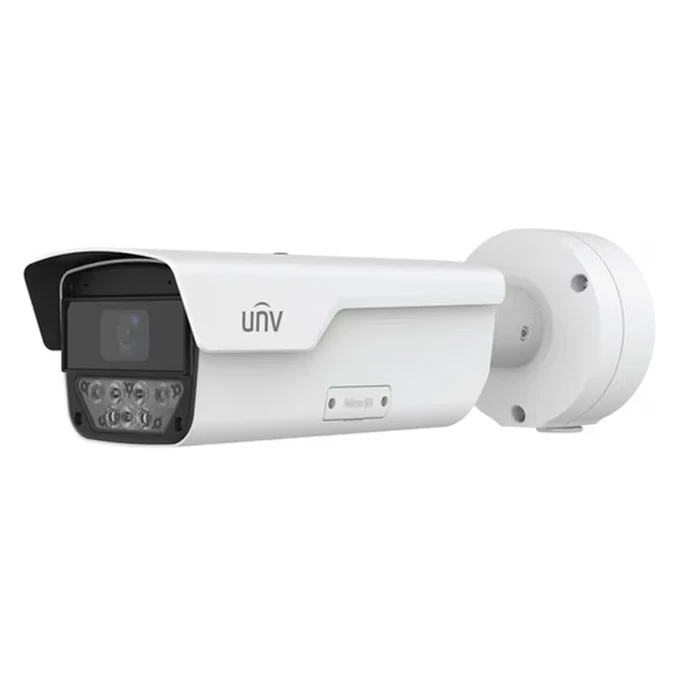

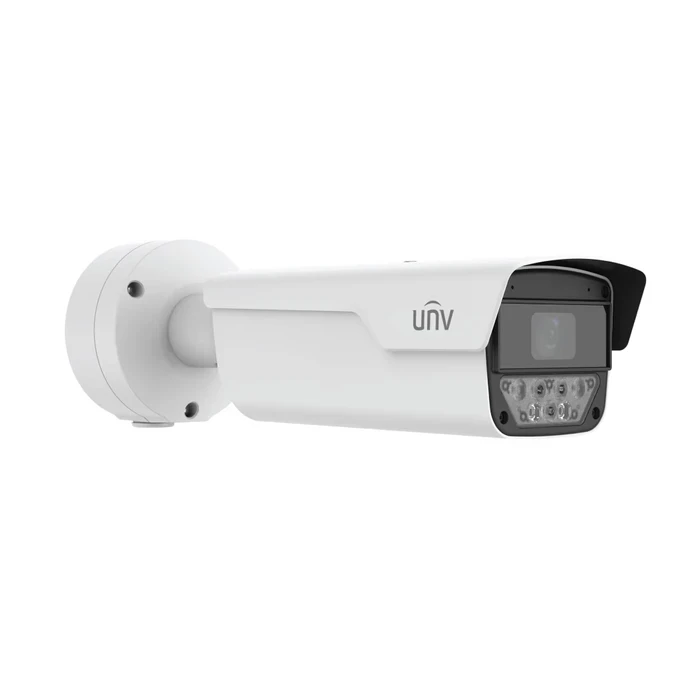

UNV IPS-HC268 HDX4-WH-I1 8.0 MP Bullet ANPR Camera | 4K 60fps High-Speed Traffic Intel System | Uniview 4X Optical Zoom 140dB WDR IK10 IP67 PoE+ Two-Way Audio CCTV
| Specification : | |
| Brand Profile | Uniview (UNV Technologies) |
| Model Code Matrix | IPS-HC268@HDX4-WH-I1 |
| Product Category | High-Speed Automatic Number Plate Recognition (ANPR) Bullet IP Cameras |
| ANPR Traffic Capability | Up to 4 Active Lanes Management | Capturing Speeds $$\l$ 120 km/h |
| Optical Capture Sensor | 1/1.8" Large-Format Progressive Scan CMOS Traffic Sensor |
| Maximum Main Resolution | 8 Megapixels | 4K Ultra HD ($$3840 \times 216$ Progressive Pixels) at 60fps |
| Lens Focal Parameters | 8 to 32 mm Motorized Varifocal Array | 4X Optical Zoom | 16X Digital Zoom |
| Iris Mechanical Structure | Advanced P-iris Controller Assembly | Large F1.6 Wide Aperture |
| Field Angle Range Coverage | Horizontal: 42° ~ 15.3° | Vertical: 22.6° ~ 8.8° | Diagonal: 51.7° ~ 18.1° |
| Wide Dynamic Range Index | Extreme Ultra-High Performance 140 dB True WDR |
| Day and Night Mode Shift | Mechanical ICR (Infrared Cut-off Removable) Traffic Grade Filter |
| Night Vision Supplemental Light | Smart Warm White Light LED Array (Uniform Non-Glare Intelligent Support) |
| Illumination Distance Limit | Massive Range Coverage: Warm White Light LED up to 40 Meters (131.2 ft) |
| Minimum Illumination Index | Colour Mode: 0.003 Lux (F1.6, AGC On) | 0.00 Lux with Active White Light |
| Bidirectional Audio Stream | Built-in Dual-Mic (2 x Mic Array) + Built-in Loudspeaker (Supports Intercom Warning) |
| Audio I/O Terminal Block | 2 Input (1 kΩ, 2.5V p-p) | 1 Output (600 Ω, 2.5V p-p) Line Routing |
| Alarm Peripheral Interfaces | 3 Terminal Hardware Inputs | 2 Relays Hardware Outputs |
| Serial Networking Port | 1 x RS485 Interface Port (PTZ or System Logic Integration) |
| Video Streams Framework | Triple Video Streams Recommendation: 4K@60fps + 1080P@60fps + D1@60fps |
| Bandwidth Compressing Engine | Ultra 265, H.265, H.264 High-Efficiency Compressing Logic + Smart U-code |
| Edge Storage Interface | MicroSD Card Slot Interface Architecture (Supports up to 512 GB local cards) |
| Network Port Connection | 1 x RJ45 10M/100M/1000M Base-TX Self-Adaptive Gigabit Ethernet Terminal |
| Climatic Internal Assembly | Integrated Automated Internal Hardware Heater System Component |
| Mechanical Security Ratings | Weatherproof IP67 Certified Shell Enclosure | IK10 Vandal-Proof Armor |
| Electrical Input Bounds | DC12V (±25%) Coaxial Plug | PoE+ Plus (IEEE 802.3at Standard Configuration) |
| Power Overhead Consumption | Heavy-Duty Operations Draw: Maximum 22 Watts under Full Load |
| Physical Outer Dimensions | 406 mm x 125 mm x 130 mm (16.0” x 4.9” x 5.1”) Frame Size |
| Hardware Net Weight Mass | Solid Armored Die-Cast Metal Casing Body: 1.86 Kilograms (4.10 lb) |
-
High-Precision Edge-AI 4-Lane ANPR Engine: Tracks up to 4 traffic lanes simultaneously, providing accurate vehicle, pedestrian, and license plate profiling at capturing speeds up to 120 km/h.
-
Fluid 8MP 4K Performance at 60fps Frame Rate: Driven by a premium 1/1.8" CMOS sensor that outputs crystal-clear native 4K ($3840 \times 2160$ pixels) resolution at 60fps, entirely erasing high-speed vehicle blur.
-
4X Optical Zoom & Precision P-Iris Lens Array: Built with a long-range 8 to 32 mm motorized lens system featuring programmatic P-iris alignment to maintain edge-to-edge optical crispness.
-
Extreme 140dB WDR & Long-Range White Light: Integrated hardware-driven multi-exposure 140dB WDR balances harsh direct headlight glare, while a soft warm-light panel illuminates grounds up to 40m.
-
IK10 Vandal-Proof, IP67 Outdoor Enclosure with Heater: Heavy-duty, armored die-cast metal housing features an integrated internal heater to operate flawlessly under extreme ambient thermal brackets from -40°C to 70°C.
