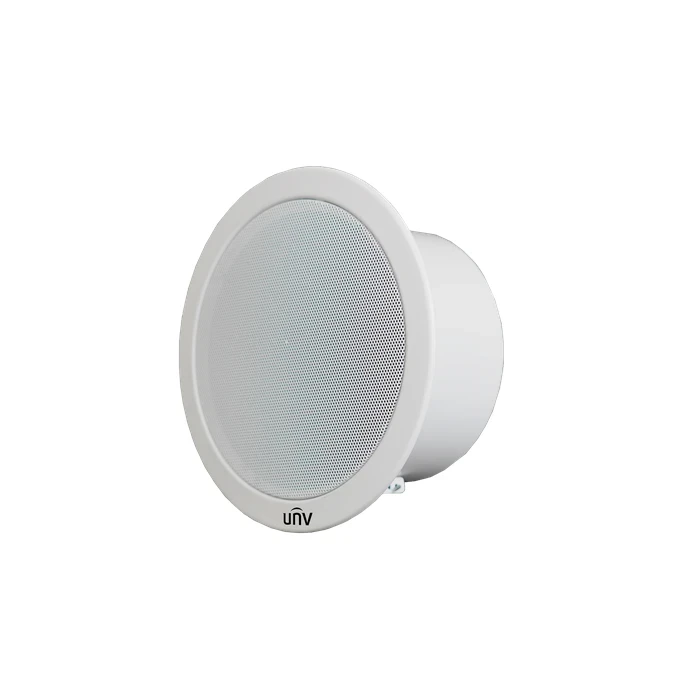

UNV IPS301015-S 15W Ceiling Mount IP Speaker | 100 dBSPL Max Sound Pressure | Uniview Two-Way Audio Network PA Speaker with PoE Power, 64MB Storage & NVR Alarm Linkage
| Specification : | |
| Brand Profile | Uniview (UNV Technologies) |
| Model Code Matrix | IPS301015-S (IPS301015-S IP Speaker) |
| Product Category | Professional Access & Surveillance Commercial PA Network IP Speakers |
| Speaker Rated Power | High-Acoustic Widescreen Output Bounds: 15 Watts Array |
| Max Acoustic Pressure | Extreme Dynamic Output Limit: 100 dBSPL Peak Pressure |
| Speaker Frequency Array | Broad Acoustic Tuning Spectrum: 100 Hz to 15 kHz Performance |
| Chassis Nominal Impedance | Standard Integrated Voice Coil Impedance Matrix: 8 Ω |
| Two-Way Audio Intercom | Fully Supported (Built-in Microphone + Speaker Combo) |
| Microphone Sensitivity | High-Clarity Voice Capture Rating: -37 dBV/Pa Base Index |
| Audio Compression Core | Standard Communication Profile Layout: G.711U Logic Loop |
| Onboard Flash Memory | 64 Megabytes (64 MB) Internal File Storage Allocation Space |
| Max Custom Files Cap | Stores up to 100 Audio Files (Supports custom MP3 & WAV formatting) |
| Broadcast Mode Agile | Multi-Tier Setup Focus: Regular Broadcast, Live PA, Automated NVR Alarm |
| Network Interface Port | 1 x RJ45 10M/100M Self-Adaptive High-Speed Ethernet Interface |
| Analog Audio Input Port | 1 x RCA Connection Input (Used for localized analog sound amplification only) |
| Alarm Peripheral Ports | 2 x Integrated Alarm Input Terminals for external sensor links |
| System Interface Protocol | Global High-Compatibility Index: ONVIF Compliant, RTSP, RTP, LAPI |
| Power Supply Intake | PoE Power Support (IEEE 802.3af) | Auxiliary Backup: DC 12V, 1.4A |
| Chassis Component Material | High-Strength Heavy-Duty Rigid Structural Metal Shell & Mesh Grille |
| Physical Dimensions | Outer Base Frame: Φ200 mm × 95 mm Depth | Required Ceiling Cutout: 180 mm |
| Global Security Marks | Fully NDAA Compliant Model | Safety Certified: CE LVD, UL, FCC, CE-EMC |
| Operating Temperature | Commercial Interior Enclosure Scope: -10°C to 50°C (14°F to 122°F) |
-
High-Acoustic 15W Loudspeaker Engine: Pushes powerful, high-penetration sound and crisp tone clarity over a wide 100 Hz to 15 kHz spectrum, reaching a high 100 dBSPL sound pressure output.
-
Integrated Microphone for Two-Way Audio: Features a built-in voice pick-up mic with a high -37 dBV/Pa sensitivity rating, enabling clear, lag-free intercom conversations with command centers.
-
Smart NVR Video & Audio Linkage Matrix: Integrates natively with Uniview network recorders to instantly trigger automated alarm broadcasts or custom warnings when cameras spot motion.
-
64MB Onboard Flash Storage for Custom Clips: Holds up to 100 customized MP3 and WAV files directly inside the chassis memory bank for scheduled announcements or warning alerts.
-
PoE Compliance & Clean Flush Architecture: Connects via a single standard RJ45 cable for PoE power (IEEE 802.3af), mounting flush inside ceilings via a robust circular metal chassis frame.
