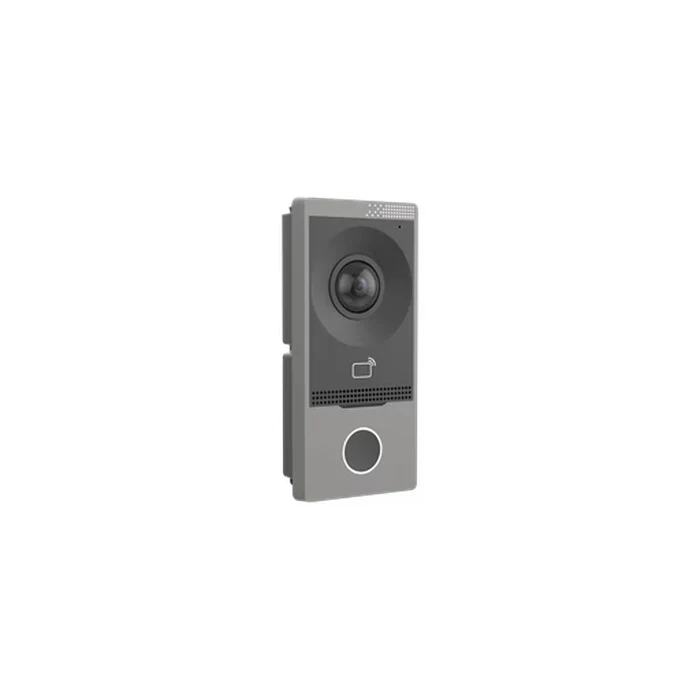

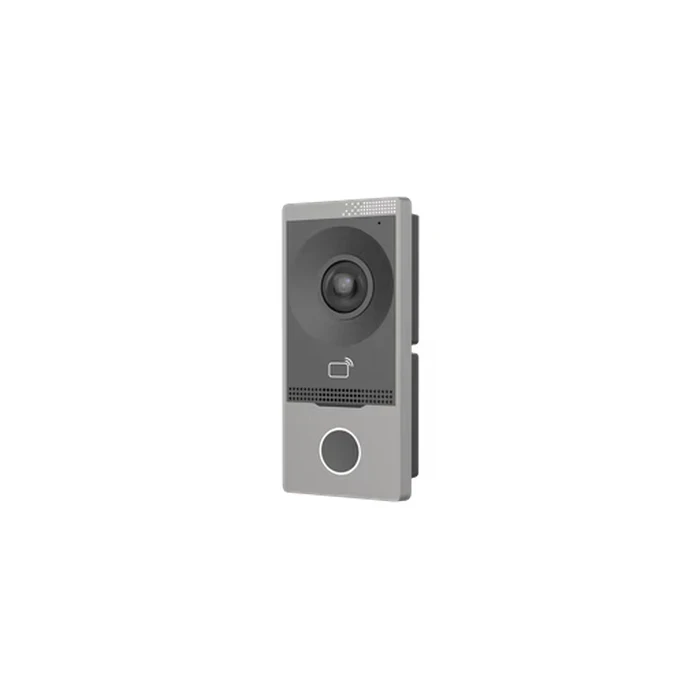

UNV Outdoor Video Door Phone Station with Aluminum Panel, 125° Wide Camera, 10,000 Card Reader, Wi-Fi & Dual Lock Relays | Model No. OEU-201S-HMK-W
| Specification : | |
| Brand Profile | Uniview (UNV) |
| Model Code | OEU-201S-HMK-W |
| Product Category | Video Door Phone Outdoor Station |
| Operating System | Linux OS |
| Camera Lens & FOV | 2.0 Megapixel CMOS / Diagonal 147.2°, Horizontal 124.3°, Vertical 67.5° |
| Night Vision & Video Features | Adaptive IR Light Compensation / Wide Dynamic Range (WDR) |
| Card & Station Capacity | 10,000 IC Cards / Links Up to 20 Indoor Stations |
| Audio Quality & Codecs | Omnidirectional Mic & Speaker / Noise Suppression, Echo Cancellation, AGC (PCM, G.711, MP3) |
| Network Interfaces | 1x 100Mbps Ethernet Port / Built-in Wi-Fi Module |
| Door Lock & I/O Interfaces | 2x Door Lock Control Interfaces, 4x IO Inputs, 1x RS485 |
| Housing & Protection Ratings | Aluminum Alloy Front Panel / IP65 Weatherproof / IK08 Vandal-Proof |
| Power Supply & Consumption | DC 12V ± 25% / Standard PoE (IEEE 802.3af) | Power Consumption < 10 W |
| Mounting Options | Surface Wall-Mounted or Flush Installation |
| Operating Environment | Temperature: -30°C to +60°C / Humidity: 10% to 90% RH (Outdoor Placement) |
| Dimensions & Weight | 79 mm × 171 mm × 34 mm / Weight: 267 g |
| Ideal Applications | Residential Villas, Apartment Entrances, Executive Offices, and Gated Communities |
-
125° Wide-Angle WDR Camera with Adaptive IR: Captures broad perimeter coverage (124.3° horizontal FOV) with Wide Dynamic Range and adaptive IR night vision for low-light clarity.
-
10,000 Card Reader & 20 Indoor Station Capacity: Built-in IC card reader supports up to 10,000 card credentials and links with up to 20 indoor monitor stations.
-
IP65 Weatherproof & IK08 Vandal-Proof Aluminum Housing: Constructed with an aluminum alloy front panel rated IP65 against dust/rain and IK08 against physical impacts (-30°C to +60°C).
-
Standard PoE & Wi-Fi Wireless Connectivity: Connects via 100Mbps Ethernet with standard IEEE 802.3af PoE or wireless 2.4GHz Wi-Fi networking.
-
Dual Lock Control Relays & 4 IO Alarm Inputs: Equipped with 2 door lock control interfaces, 4 IO inputs, RS485 communication, and an integrated mic/speaker with active noise suppression.
