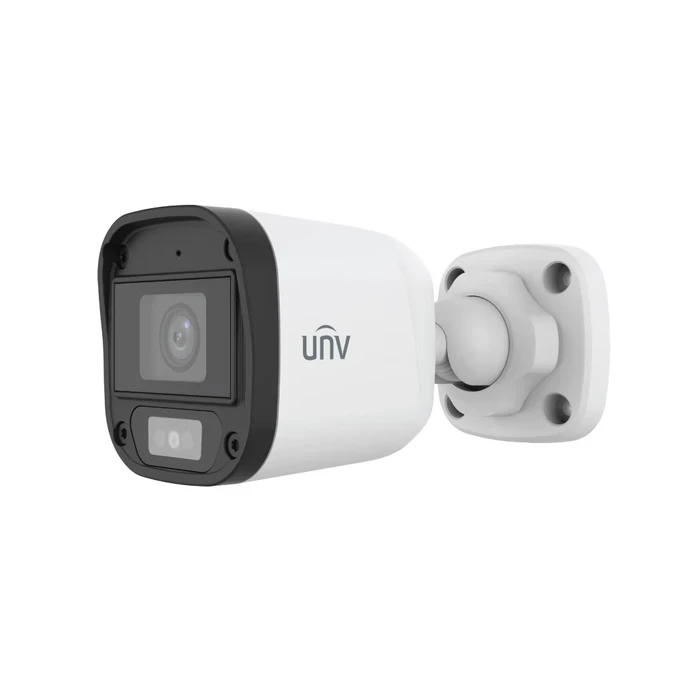

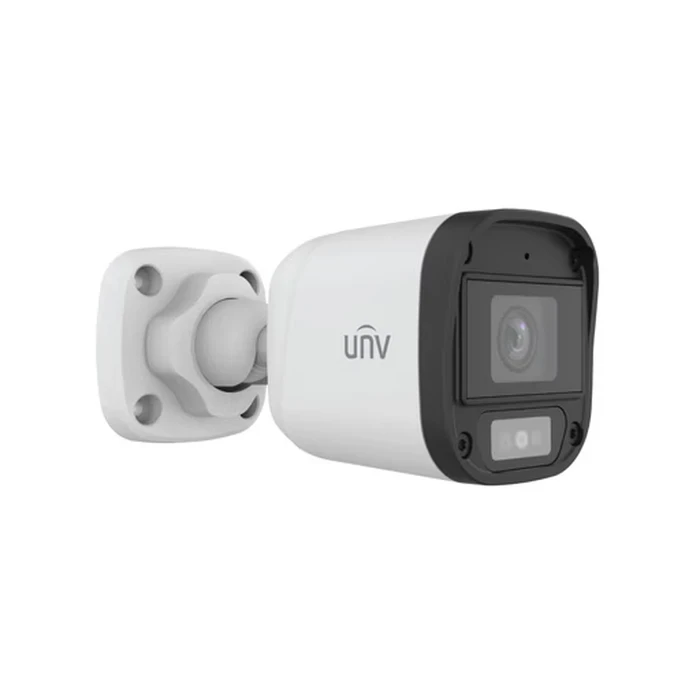

UNV UAC-B112-AF40-DL 2.0 MP ColorHunter Analog Bullet Camera | 1080P Smart Dual-Light Night Vision | Uniview 4.0mm Built-in Mic IP67 CCTV Guard
| Specification : | |
| Brand Profile | Uniview (UNV Technologies) |
| Model Code Matrix | UAC-B112-AF40-DL Series |
| Product Category | Smart Dual-Light ColorHunter Analog Bullet CCTV Cameras |
| Optical Capture Sensor | 1/3.0" Progressive Scan CMOS Core Sensor Unit |
| Maximum Image Resolution | 2 Megapixels | 1080P HD (1920 Horizontal x 1080 Vertical Pixels) |
| Lens Focal Parameters | 4.0 mm Fixed Focal Length Area | Standard M12 Lens Mount Grid |
| Field Angle Range Coverage | Horizontal: 75.1° | Vertical: 41.8° | Diagonal: 86.2° |
| Integrated Audio Stream | Built-in High-Fidelity Microphone (TVI/CVI Audio-Over-Coax Support) |
| Night Vision Light Array | Hybrid Architecture: Two IR Illuminators + One Warm White-Light LED |
| Illumination Distance Limit | Infrared: 20 Meters Range Bound | White Light: 20 Meters Range Bound |
| Operational Light Modes | Dual Light Automation (Default Mode), Pure Infrared, Pure White Light |
| Video Signal Formats | Universal BNC Connector: TVI / AHD / CVI / CVBS Format Switching |
| Maximum Capture Frame Rate | 1080P @ 25fps or 30fps | 720P @ 25fps or 30fps |
| Ingress Protection Rating | Weatherproof IP67 Certified Dustproof and Waterproof Enclosure |
| Electrical Input Bounds | DC12V (±25%) Operational Allocation (5.5 mm Power Interface) |
| Power Overhead Consumption | Highly Efficient Draw: Maximum 2.8 Watts under Full Illuminator Load |
| Hardware Surge Protection | 4 KV Isolation Shield for Power Port | 4 KV Isolation Shield for BNC Port |
| Operational Ambient Thermal | -30 °C to 60 °C (-22 °F to 140 °F) Outdoor Extreme Climate Range |
| Physical Outer Dimensions | 140 Millimeters x 61 Millimeters x 65 Millimeters (L x W x H) |
| Hardware Net Weight | Compact Light Frame Body: 142 Grams (0.31 Pounds Net Weight) |
-
Intelligent Smart Dual-Light Automation: Uses invisible infrared tracking up to 20m under normal night cycles, instantly activating a soft white LED upon alert to capture rich color forensics.
-
Corridor-Focused 4.0mm Optical Lens: Engineered with a specialized 75.1° horizontal angle of view, optimized for monitoring long fence lines, narrow alleys, and entry corridors with high pixel density.
-
Integrated Audio Over Coaxial Cable Built-in Mic: Outfitted with an internal high-fidelity microphone that transmits live environmental audio streams directly over standard TVI and CVI coaxial feeds.
-
Universal 4-in-1 BNC Format Switching: Features a single multi-format BNC output that supports TVI, AHD, CVI, and CVBS analog video matrices for trouble-free matching with third-party DVRs.
-
IP67 Ruggedized All-Weather Shielding: Compact high-density framework operates reliably in pouring rain, dust storms, and extreme temperatures ranging from -30°C to 60°C.
