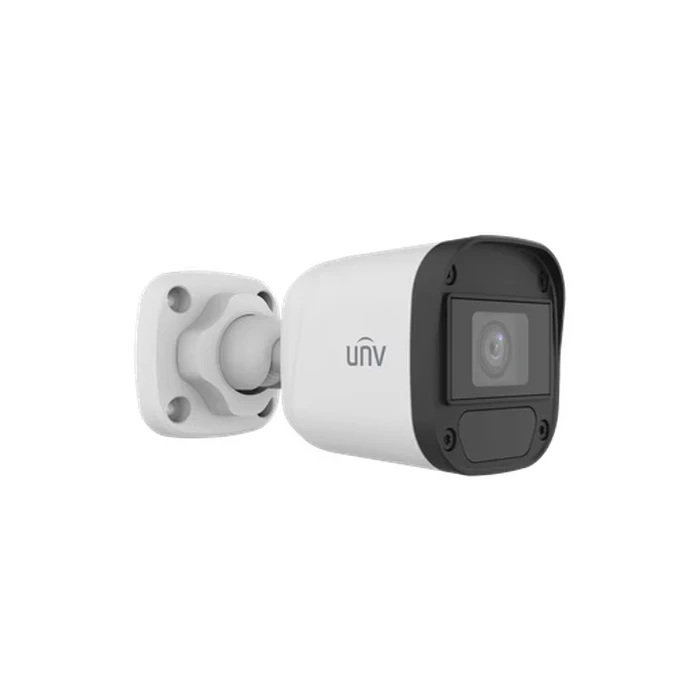

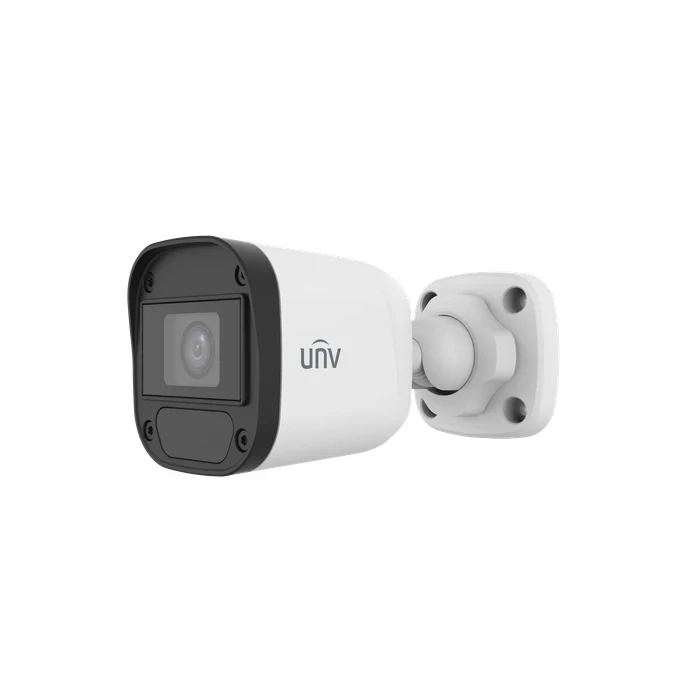

UNV UAC-B112-F40 2.0 MP HD Fixed IR Mini Bullet Analog Camera | 1080P Full HD 4.0mm Lens | Uniview IP67 Weatherproof Outdoor 4-in-1 CCTV Camera
| Specification : | |
| Brand Profile | Uniview (UNV Technologies) |
| Model Code Matrix | UAC-B112-F40 Series |
| Product Category | Fixed IR Mini Bullet Analog CCTV Surveillance Cameras |
| Optical Capture Sensor | 1/3" Progressive Scan Image Sensor Core |
| Maximum Image Resolution | 2 Megapixels | 1080P HD (1920 Horizontal x 1080 Vertical Pixels) |
| Lens Focal Parameters | 4.0 mm Fixed Focal Length Area | Standard M12 Lens Mount Grid |
| Field Angle Range Coverage | Horizontal: 80.2° | Vertical: 40.7° | Diagonal: 90.5° |
| Minimum Illumination Index | 0.02 Lux (F2.0 Lens Open, AGC On) | 0.00 Lux with Night IR Active |
| Night Vision Range Limit | Up to 20 Meters Range Coverage via One High-Output IR Illuminator |
| Day and Night Mode Shift | Mechanical IR-Cut Filter with Auto Switch (ICR System Logic) |
| Video Signal Formats | Universal BNC Loop: TVI / AHD / CVI / CVBS Format Switching |
| Maximum Capture Frame Rate | 1080P @ 25fps or 30fps | 720P @ 25fps or 30fps |
| Image Optimization Controls | DWDR (Digital WDR), Global Exposure, BLC, HLC, 2D Noise Reduction |
| Ingress Protection Rating | Weatherproof IP67 Certified Dustproof and Waterproof Shell |
| Electrical Input Bounds | DC12V (±25%) with Integrated Reverse Polarity Protection |
| Power Overhead Consumption | Ultra-Efficient Draw: Maximum 2.88 Watts with Full IR Load |
| Hardware Surge Shunt Rating | 4 kW Built-in Lightning and Static Electricity Protection |
| Operational Ambient Thermal | -30 °C to 60 °C (-22 °F to 140 °F) Outdoor Extreme Climate Range |
| Mounting Mechanism | Included Fully Articulated 3D Bracket for Surface/Wall/Pole Mounts |
| Physical Outer Dimensions | 142 Millimeters x 63 Millimeters x 65 Millimeters (L x W x H) |
| Hardware Net Weight | Lightweight High-Density Body: 135 Grams (0.30 Pounds) |
| Standard Package Includes | 1 x UNV UAC-B112-F40 Camera, 3D Bracket Kit, Screw Pack, Drill Template |
-
Clear 2MP 1080P Full HD Video Output: Powered by a responsive 1/3" sensor engine that outputs sharp 1080P high-definition video streams at up to 30 frames per second.
-
Corridor-Optimized 4.0mm Fixed Focal Lens: Offers a specialized 80.2° horizontal field of view, ideal for focusing down long hallways, gates, building sides, and specific parking bays.
-
Smart Night Vision & Automatic ICR Filter: Features a high-intensity IR illuminator reaching up to 20m, managed by an automatic mechanical IR-cut switch to prevent overexposure in total darkness.
-
IP67 Waterproof & Weatherproof Chassis: Built into a durable, weather-shielded enclosure designed to operate flawlessly outdoors across extreme temperatures from -30°C to 60°C.
-
Universal 4-in-1 BNC Coaxial Signal Output: Features a single BNC connection supporting TVI, AHD, CVI, and CVBS analog video formats for trouble-free matching with third-party DVRs.
