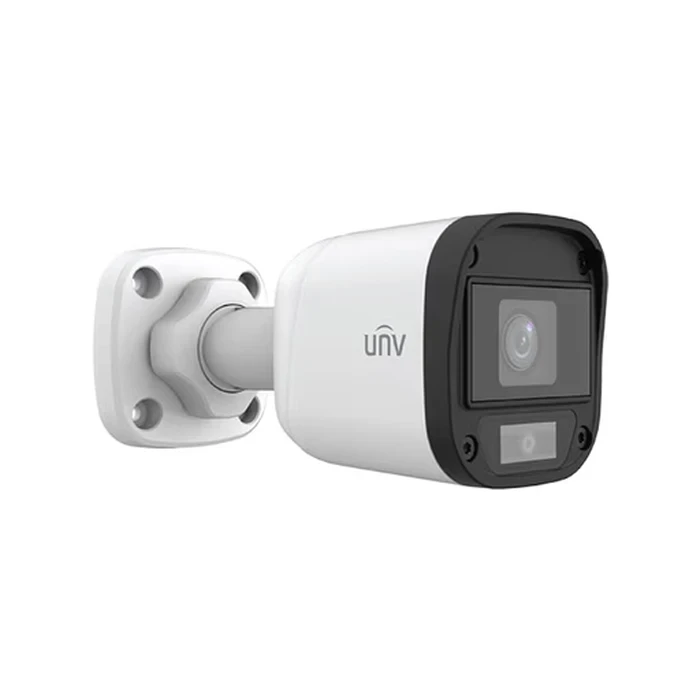

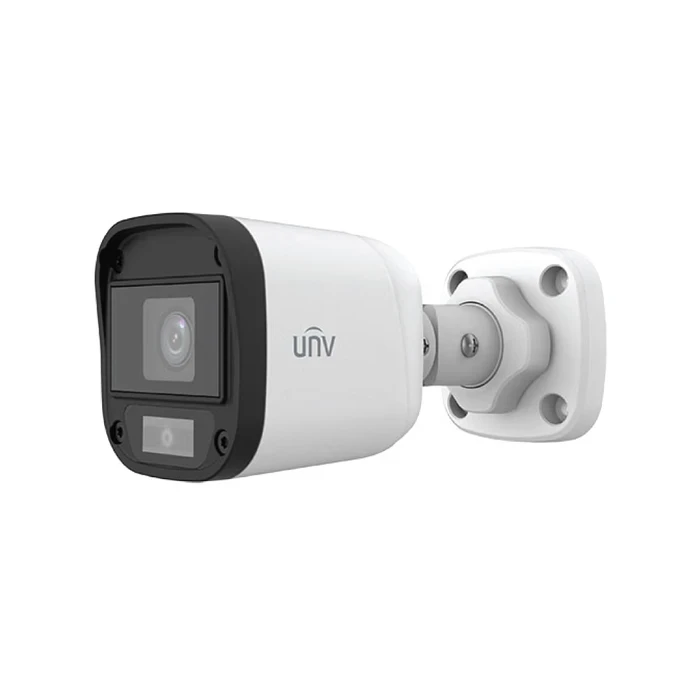

UNV UAC-B112-F40-W 2.0 MP ColourHunter Analog Bullet Camera | 1080P 24/7 Full Color Night Vision | Uniview 4mm IP67 Weatherproof Outdoor 4-in-1 CCTV Camera
| Specification : | |
| Brand Profile | Uniview (UNV Technologies) |
| Model Code Matrix | UAC-B112-F40-W Series |
| Product Category | ColourHunter 24/7 Full Color Mini Bullet Analog CCTV Cameras |
| Optical Capture Sensor | 1/3" Progressive Scan Low-Light CMOS Sensor Core |
| Maximum Image Resolution | 2 Megapixels | 1080P Full HD (1920 Horizontal x 1080 Vertical) |
| Lens Focal Parameters | 4.0 mm Fixed Focal Length Area | Standard M12 Lens Mount Grid |
| Field Angle Range Coverage | Horizontal: 82.5° | Vertical: 42.1° | Diagonal: 98.6° |
| Minimum Illumination Index | 0.01 Lux (F1.6 Aperture, AGC On) | 0.00 Lux with White Light Active |
| Night Vision Technology | Continuous 24/7 Full Color via One Soft White-Light Illuminator |
| Illumination Distance Limit | Reaches Up to 20 Meters Visible Range Coverage (Lifetime ≥60,000 Hrs) |
| Video Signal Formats | Universal BNC Loop: TVI / AHD / CVI / CVBS Format Switching |
| Maximum Capture Frame Rate | 1080P @ 25fps or 30fps | 720P @ 25fps or 30fps |
| Image Optimization Controls | DWDR (Digital WDR), Global Exposure, BLC, HLC, 2D/3D Noise Reduction |
| Ingress Protection Rating | Weatherproof IP67 Certified Dustproof and Waterproof Shell |
| Electrical Input Bounds | DC 12V (±25%) with Integrated Reverse Polarity Protection |
| Power Overhead Consumption | Ultra-Efficient Draw: Maximum 2.4 Watts with Full White Light Load |
| Hardware Surge Shunt Rating | 4KV Built-in Lightning and Static Electricity Protection |
| Operational Ambient Thermal | -30 °C to 60 °C (-22 °F to 140 °F) Outdoor Extreme Climate Range |
| Mounting Mechanism | Included Fully Articulated 3D Bracket for Surface/Wall/Pole Mounts |
| Physical Outer Dimensions | 142 Millimeters x 63 Millimeters x 65 Millimeters (L x W x H) |
| Hardware Net Weight | High-Density Compact Shell Body: 145 Grams (0.32 Pounds) |
-
Uniview 24/7 ColorHunter Full-Color Capture: Utilizes a highly sensitive low-light sensor and wide F1.6 aperture layout to deliver bright, high-definition color imaging all day and night.
-
Smart 20m White-Light Illuminator: Outfitted with an automated white-light LED assembly that reaches up to 20m, automatically balancing scenes to capture key forensic color signatures.
-
Corridor-Optimized 4.0mm Fixed Lens: Features a focused 82.5° horizontal field of view, ideal for monitoring narrow access alleys, main perimeter fences, gates, and storefront walkways.
-
IP67 High-Reliability Weatherproof Rating: Encased in a durable, weather-shielded housing built to operate smoothly outdoors in intense rain, dust, and temperatures from -30°C to 60°C.
-
Universal 4-in-1 BNC Coaxial Signal Output: Features a single BNC connection supporting TVI, AHD, CVI, and CVBS analog video matrices for trouble-free matching with third-party DVRs.
