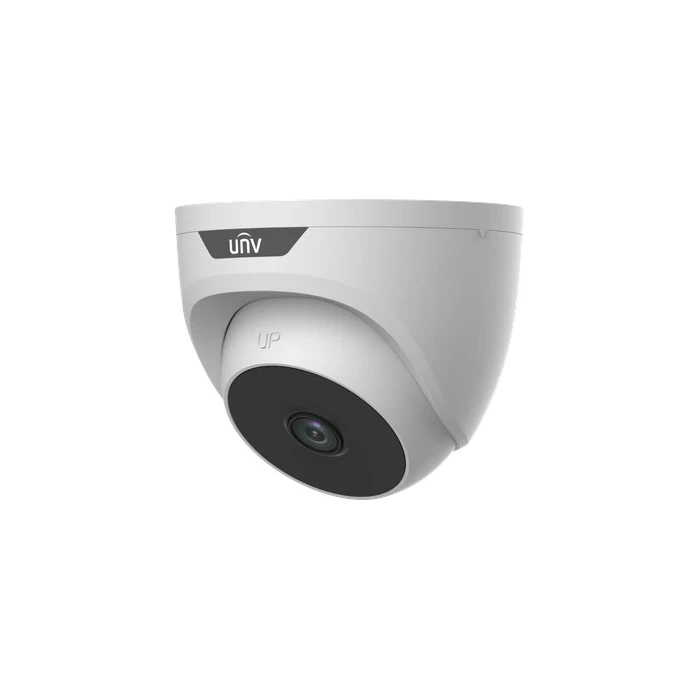

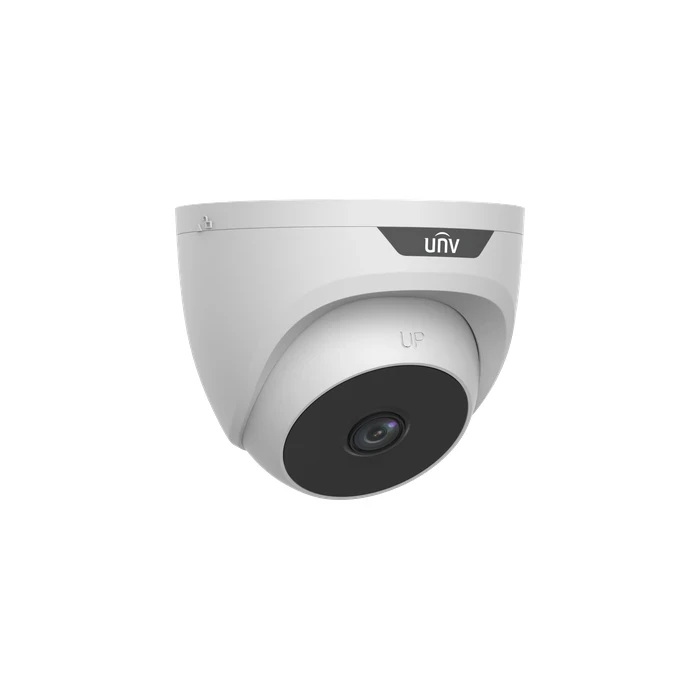

UNV UAC-T132-F28 2.0 MP Fixed IR Turret Analog Camera | 1080P Full HD 2.8mm Wide-Angle | Uniview 4-in-1 TVI/AHD/CVI/CVBS CCTV Security Node
| Specification : | |
| Brand Profile | Uniview (UNV Technologies) |
| Model Code Matrix | UAC-T132-F28 Series |
| Product Category | Fixed IR Turret Analog CCTV Surveillance Cameras |
| Optical Capture Sensor | 1/3.2" Progressive Scan CMOS Core Sensor Unit |
| Maximum Image Resolution | 2 Megapixels | 1080P HD (1920 Horizontal x 1080 Vertical Pixels) |
| Lens Focal Parameters | 2.8 mm Fixed Focal Length Area | Standard M12 Lens Mount Grid |
| Field Angle Range Coverage | Horizontal: 99.7° | Vertical: 55.1° | Diagonal: 117.1° |
| Minimum Illumination Index | 0.02 Lux (F2.0 Lens Open, AGC On) | 0.0 Lux with Night IR Active |
| Night Vision Range Limit | Up to 20 Meters Range Coverage via One Monolithic IR Illuminator |
| Day and Night Mode Shift | Mechanical IR-Cut Filter with Auto Switch (ICR System Logic) |
| Video Signal Formats | Universal BNC Loop: TVI / AHD / CVI / CVBS Format Switching |
| Maximum Capture Frame Rate | 1080P @ 25fps or 30fps | 720P @ 25fps or 30fps |
| Image Optimization Controls | DWDR (Digital WDR), Global Exposure, BLC, HLC, 2D/3D Noise Reduction |
| Electrical Input Bounds | DC 12V ± 25% Power Allocation (5.5 mm Barrel Interface Connection) |
| Power Overhead Consumption | Ultra-Efficient Draw: Maximum 1.9 Watts with Full IR Load |
| Chassis Component Material | High-Density Engineering Grade Polymeric Plastic Frame Enclosure |
| Hardware Surge Shunt Rating | 4kV Surge Protection for Both Power Input & Video BNC Coaxial Ports |
| Operational Ambient Thermal | -20 °C to 60 °C Operational Climate Range Bounds |
| Physical Outer Dimensions | Diameter: Φ85 Millimeters x Height: 72 Millimeters |
| Hardware Net Weight | Ultra-Lightweight Design: 89.3 Grams (0.20 Pounds Body Weight) |
-
Sharp 2.0 MP 1080P Full HD Telemetry: Powered by a responsive 1/3.2" CMOS sensor engine that records clear 1080P high-definition video streams at up to 30 frames per second.
-
Wide-Angle 2.8mm M12 Optical Focus: Offers an expansive 99.7° horizontal field of view, ideal for capturing large rooms, long hallways, or storefront perimeters with minimal blind spots.
-
Smart Night Vision & Automatic ICR Filter: Features a high-intensity IR illuminator that reaches up to 20m, managed by an automatic IR-cut switch to prevent overexposure in total darkness.
-
Universal 4-in-1 Mechanical Video Output: Features a single BNC port that switches between TVI, AHD, CVI, and CVBS analog video formats for trouble-free integration with various DVR brands.
-
Industrial 4kV Dual-Port Surge Protection: Built with robust 4kV inline surge shunt arrays across both power and video paths to shield internal circuits from unexpected voltage spikes.
