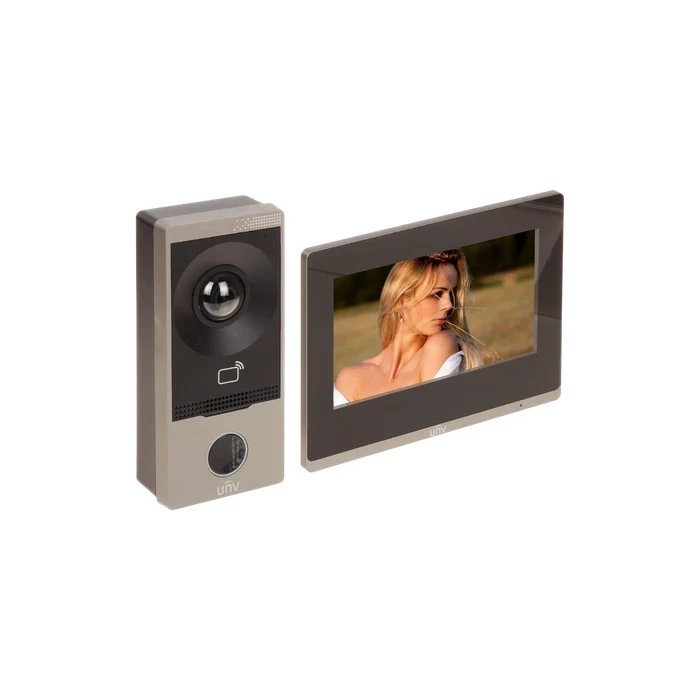

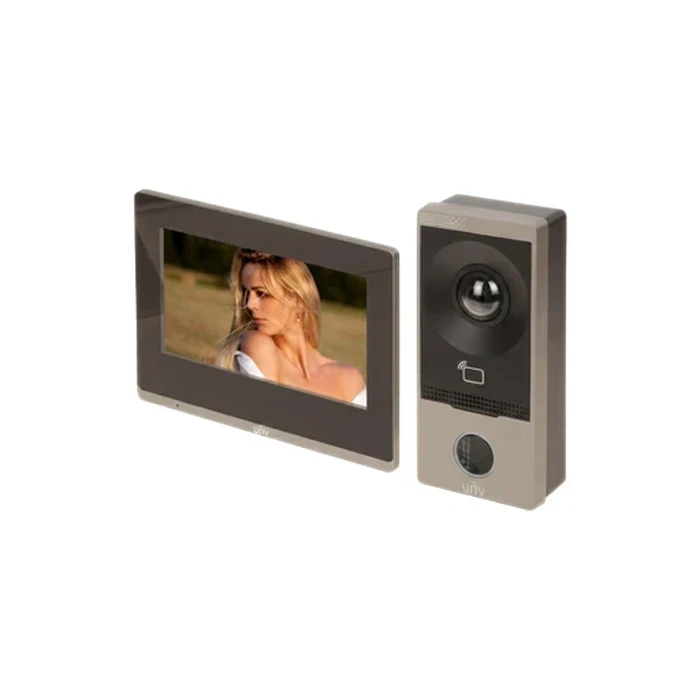

UNV Villa Video Doorphone Kit with 7" Ultra-Thin Touch Screen, 2MP WDR Camera, Mifare Card Reader, Wi-Fi & App Unlock | Model No. KIT/201S/372S
| Specification : | |
| Brand Profile | Uniview (UNV) |
| Model Code | KIT/201S/372S |
| Product Category | IP Villa Video Doorphone Kit |
| Outdoor Camera & Sensor | 2.0 Megapixel CMOS / 124° Wide View Angle / WDR & IR Illuminator |
| Indoor Monitor Display | 7.0-Inch Capacitive Touch Screen (1024 x 600 Resolution) |
| Proximity Card Reader | Built-in 13.56 MHz S50 Mifare IC Card Reader |
| Audio Processing | Bidirectional Audio / Integrated Mic & Speaker / Echo Cancellation |
| Network & Connectivity | 10/100Mbps Ethernet Port / Built-in Wi-Fi Module |
| Mobile App Support | UNV-Link Application (iOS / Android) for Remote Monitoring & Unlocking |
| Protection Ratings | Outdoor Station: IP65 Weatherproof / IK08 Vandal-Proof / Tamper Alarm |
| I/O & Expansion Interfaces | Outdoor: 4x Alarm In, 2x NO/NC Relays, RS485 | Indoor: 8x Alarm In, 2x Alarm Out |
| Storage Capacity | MicroSD Card Slot Supported Up to 32 GB (32 GB Included) |
| IP Camera Live View | Supports Live Monitoring for Up to 20 Uniview IP Network Cameras |
| Power Supply & Consumption | PoE (IEEE 802.3af) / DC 12V | Power Consumption ≤ 10 W |
| Outdoor Unit Dimensions | 79 mm x 171 mm x 34 mm / Weight: 0.34 kg |
| Indoor Unit Dimensions | 193 mm x 143 mm x 25 mm / Weight: 0.33 kg |
| Ideal Applications | Private Villas, Residential Homes, Executive Offices, and Apartment Entrances |
-
Complete IP Villa Doorphone Kit: Includes a 2MP outdoor video door station and an ultra-thin 7-inch capacitive touch screen indoor panel (1024 x 600 resolution) for complete entry management.
-
2MP WDR Camera & 13.56MHz Mifare Reader: Outdoor station features a 2MP camera with a wide 124° view angle, IR night vision, WDR, and a built-in Mifare proximity card reader for contactless entry.
-
IP65 Weatherproof & IK08 Vandal-Resistant: Housed in an aluminum-and-plastic enclosure built for outdoor conditions with IP65 weatherproofing, IK08 vandal resistance, and tamper removal alarms.
-
Wi-Fi, PoE & UNV-Link App Unlock: Supports standard PoE (802.3af) and built-in Wi-Fi for remote live view, two-way audio communication, and one-key door unlocking via the UNV-Link mobile app.
-
Smart Security & IP Camera Integration: Indoor monitor supports up to 20 Uniview IP camera live views, auto-photo captures on missed calls, voice messaging, 8 alarm inputs, and MicroSD expansion up to 32 GB.
