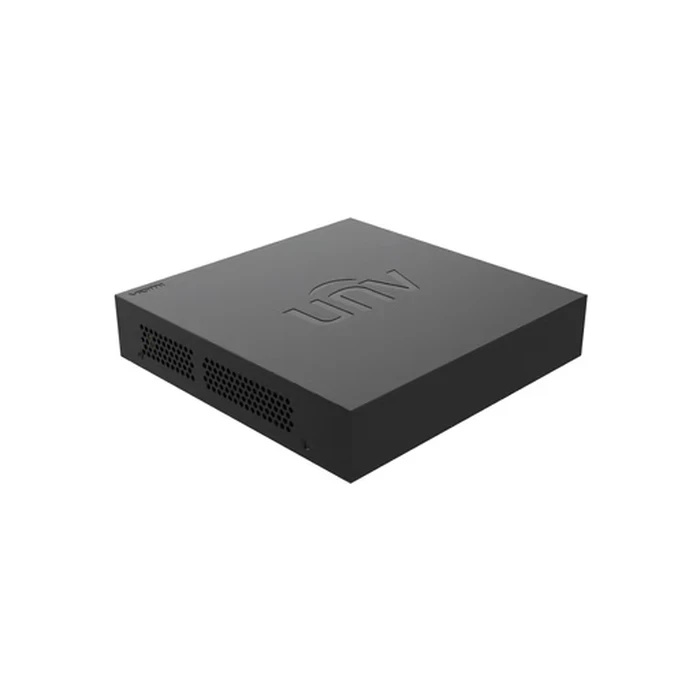

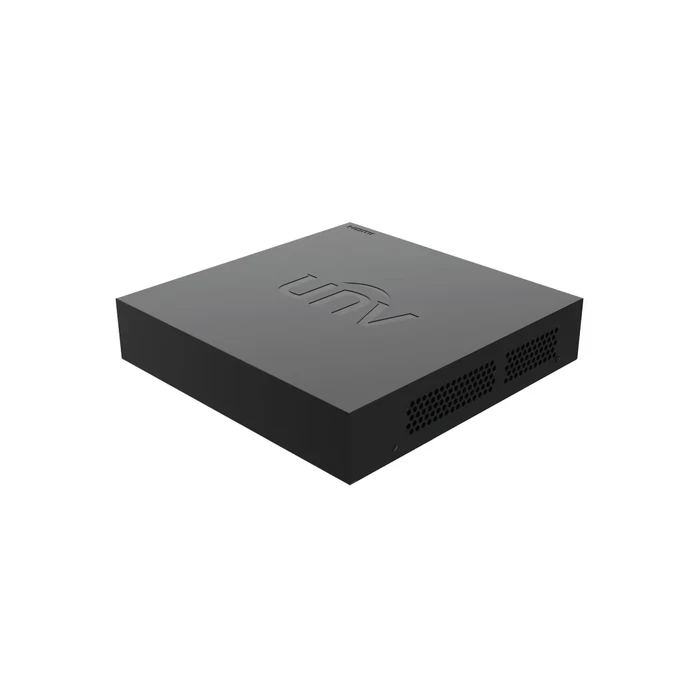

UNV XVR301-08G3 8 Channel Hybrid Video Recorder | 5MP Lite / 1080P Adaptive Encoding | Uniview 5-in-1 CCTV Console with Dual-Light Camera Control
| Specification : | |
| Brand Profile | Uniview (UNV Technologies) |
| Model Code Matrix | XVR301-08G3 |
| Product Category | 8-Channel Hybrid Digital Video Recorders (XVR) |
| Physical BNC Inputs | 8 Channels Base Frame (Auto Adaptive Hardware) |
| Supported Analog Formats | HDTVI / HDCVI / AHD / CVBS Standard Coaxial Lines |
| Hybrid IP Capacity Scope | Replaces all BNC channels to support up to 8 IP Channels (Max 4MP) |
| Analog Input Tracking Limits | TVI / AHD: 5MP@12fps, 4MP@15fps, 1080P@30fps | CVI: 4MP@15fps, 1080P@30fps |
| Main Stream Recording Options | 5MP Lite @ 6fps | 4MP Lite @ 8fps | 1080P Lite @ 15fps | 1080P @ 8fps |
| Extra Stream Recording | D1 Resolution Frame Output at a Maximum of 15fps |
| Telemetry Output Display | 1 x HDMI Full HD Port + 1 x VGA Port Concurrent Output |
| Supported Output Resolutions | 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 |
| Audio Interface Terminal | 1-Channel RCA Input | 1-Channel RCA Output (Bidirectional Support) |
| Storage Hard Disk Interface | 1 x SATA 3.5" Drive Slot Configuration (Up to 6TB Capacity, HDD Not Included) |
| Network Interface Port | 1 x RJ45 10M/100M/1000M Self-Adaptive Gigabit Ethernet |
| Peripheral Device I/O | 2 x USB Interface Ports (Mouse Control & External Data Export) / RS485 |
| Remote Access Capabilities | Web Browsers, CMS Software (EZStation), Mobile Apps (EZView / EZLive) |
| Operational Power Allocation | DC 12V Grid Feed Consumption Limit: 8 Watts |
| Chassis Dimensions & Mass | 46 mm (H) x 260 mm (W) x 243 mm (D) | Net System Weight: 1.0 Kilogram |
-
Universal 5-in-1 Adaptive Hybrid Platform: Seamlessly integrates standard analog BNC inputs (HDTVI, HDCVI, AHD, CVBS) with progressive IP video channel routing on a single hub.
-
Smart Analog Dual-Light Coaxial Control: Features direct software-driven command loops to control the dual-light illumination matrices of UNV analog cameras over TVI connections.
-
4MP High-Resolution IP Channel Expansion: Supports conversion of all physical branches to host up to 8 network IP camera streams up to 4 Megapixel resolution.
-
Surveillance Grade SATA Hard Drive Bay: Houses an internal 3.5-inch SATA storage configuration path that supports a high-capacity archive drive up to 6 TB.
-
Synchronous Bidirectional Audio Mapping: Equipped with designated RCA audio input and output channels to allow clear, dual-path live intercom communication across the network.
