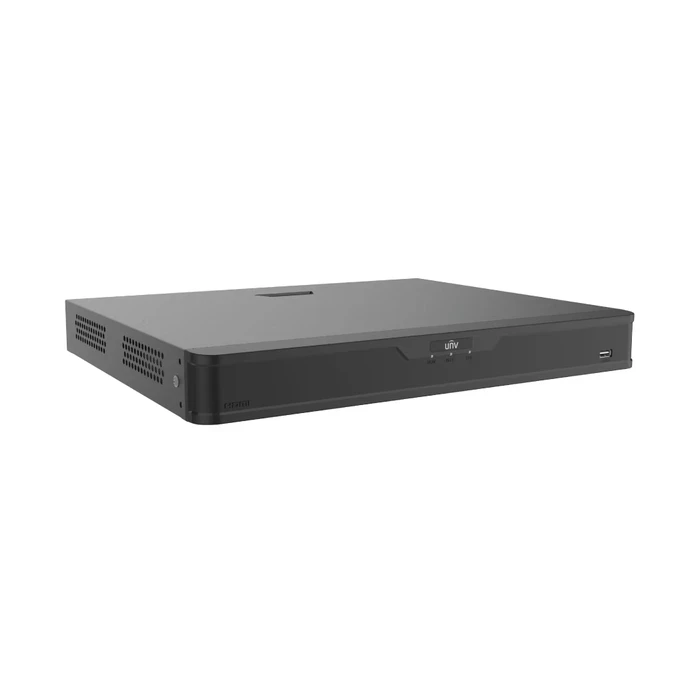

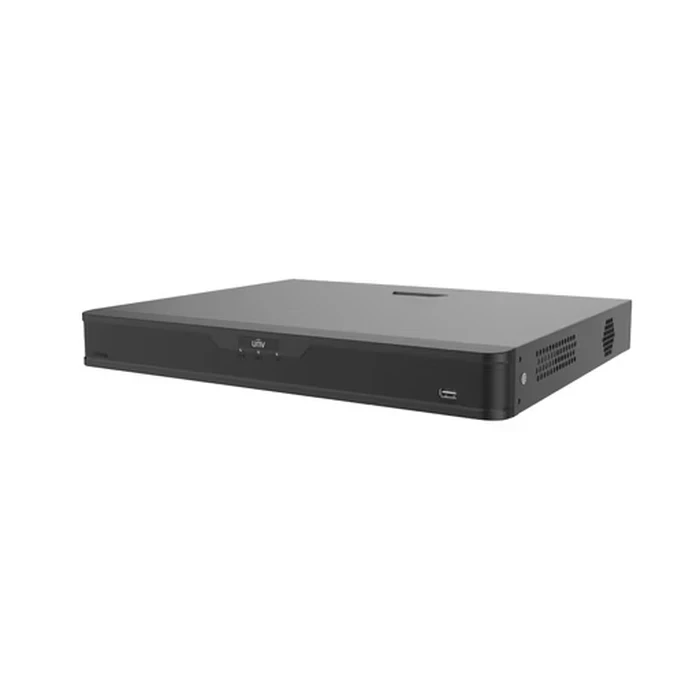

UNV XVR302-32Q3 32 Channel Hybrid Video Recorder | 4K Ultra HD Output | 8MP Lite Adaptive Encoding | Uniview 5-in-1 Enterprise CCTV Storage Console
| Specification : | |
| Brand Profile | Uniview (UNV Technologies) |
| Model Code Matrix | XVR302-32Q3 Series |
| Product Category | High-Density 32-Channel Hybrid Digital Video Recorders (XVR) |
| Physical BNC Inputs | 32 Channels, Auto-Adaptive BNC Interface Coaxial Connectors |
| Supported Analog Formats | HDTVI / HDCVI / AHD / CVBS Standard Coaxial Lines |
| Hybrid IP Capacity Scope | 4-Ch IP Base Input (Expandable up to 36 IP Channels replacing BNC, Max 8MP) |
| Analog Resolution Support | AHD/TVI/CVI: 8MP @ 15fps, 5MP @ 20/25fps, 4MP @ 30fps, 1080P @ 30fps |
| Recording Res Profile | 8MP Lite / 5MP Lite / 4MP Lite / 1080P / 720P / D1 Encoding Options |
| Main Stream Recording Rates | 8MP Lite @ 8fps | 5MP Lite @ 12fps | 4MP Lite @ 15fps | 1080P @ 15fps |
| Video Telemetry Output Matrix | 1 x HDMI 4K UHD Port (Max 3840x2160/30Hz) | 1 x VGA Full HD Port | 1-ch BNC |
| Supported Video Layout Display | HDMI/VGA Concurrent Multi-Window Split Grids: 1 / 4 / 6 / 8 / 9 / 25 / 36 |
| Audio Coaxial Sync Integration | 32-Channel One-Way Audio Over Coaxial (Only for Uniview CVI Protocol Cameras) |
| Traditional Audio Terminals | 1-Channel RCA Input | 1-Channel RCA Output (Bidirectional Intercom Support) |
| Smart AI Analytics Profile | 16-ch UMD (Motion Filter) | 8-ch SIP (Intrusion/Line-Cross) | 2-ch Face Detection |
| Forensic Search Utilities | Face Search Analytics, Behavior Search Filters, People Counting Data Reports |
| Storage Hard Disk Interface | 2 x SATA 3.5" Bays (Up to 24TB per HDD, Maximum 48TB System Capacity) |
| Hardware Alarm Interfaces | 4-Channel Built-in Alarm Input Nodes | 1-Channel Alarm Output Relay Node |
| Network Interface Port | 1 x RJ45 10M/100M/1000M Self-Adaptive Gigabit Ethernet Terminal |
| Peripheral Device Interfacing | Front Panel: 1 x USB 2.0 | Rear Panel: 1 x USB 3.0 | 1 x RS485 Terminal Pin |
| Remote Access Capabilities | Web Browsers (IE/Chrome/Edge/Firefox), EZStation CMS, Mobile EZView App |
| Physical Enclosure Dimensions | 380 mm (W) x 326 mm (D) x 53 mm (H) | 15.0" x 12.8" x 2.1" Rack-Ready Size |
| Net Hardware Mass (No HDD) | ≤2.6 Kilograms Body Weight (5.72 Pounds Gross Enclosure Weight) |
-
High-Density 32-Channel Adaptive Hybrid Configuration: Seamlessly maps 32 physical BNC analog inputs (TVI, AHD, CVI, CVBS) alongside expandable network IP routing for up to 36 total channels.
-
Stunning 4K Ultra HD Display Telemetry Output: Drives pristine multi-screen real-time surveillance video display grids via a dedicated 4K HDMI port supporting up to 3840 x 2160 pixels resolution.
-
Deep Edge-AI UMD, SIP & Face Detection Analytics: Features advanced 16-channel Ultra Motion Detection, 8-channel Smart Intrusion Prevention, and a 2-channel specialized Face Detection processor.
-
Massive Dual SATA 48 TB Archive Storage System: Built with 2 internal SATA 3.5-inch expansion slots that accommodate high-capacity surveillance hard drives up to 24 TB per drive bay.
-
Synchronous Audio Over Coaxial & Hardware Alarm I/O: Supports a 32-channel one-way audio pipeline over coax (Uniview CVI protocol) alongside 4 integrated alarm inputs and 1 alarm output terminal.
