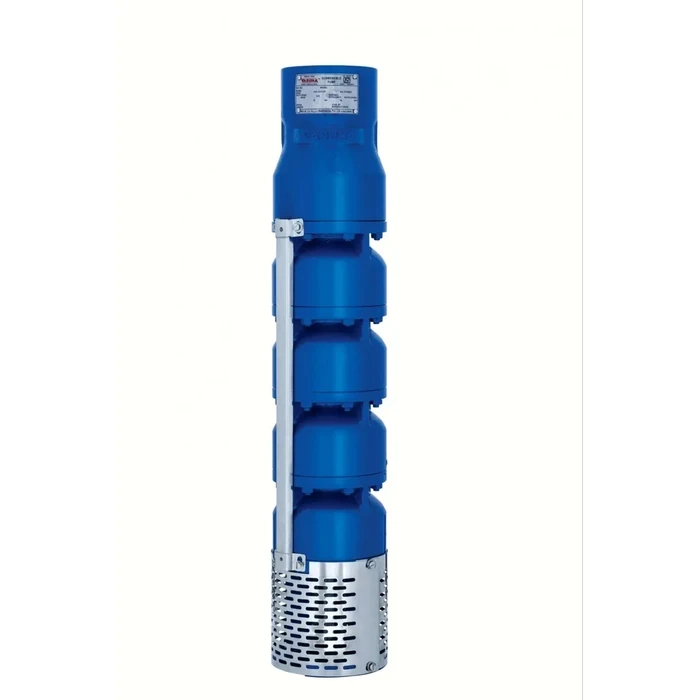

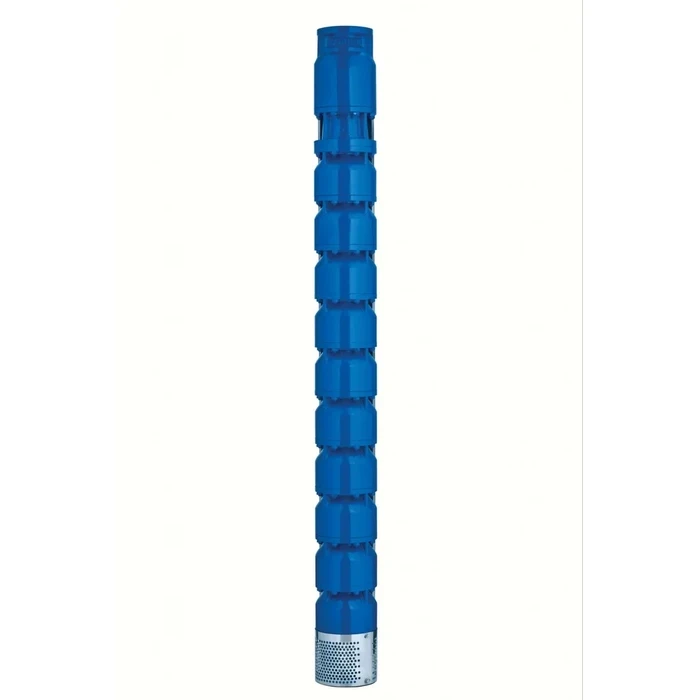

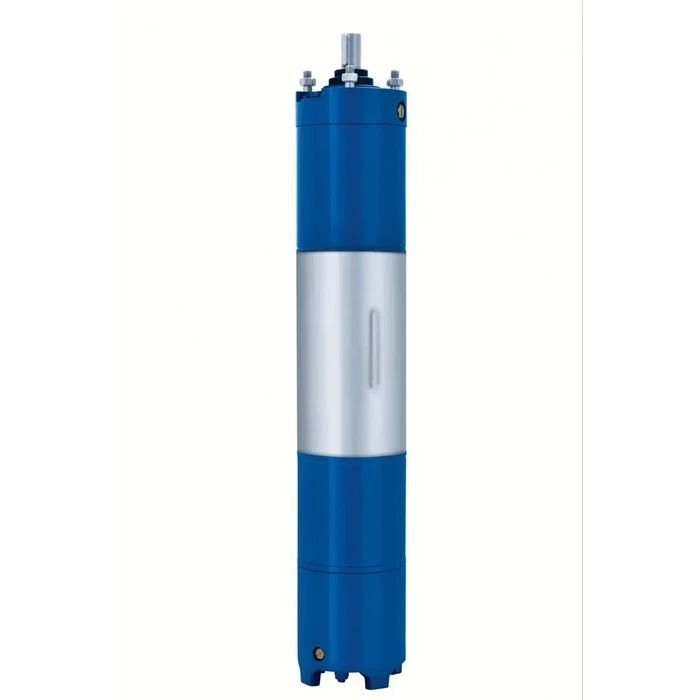

Varuna V6 Series 6" Heavy-Duty Stainless Steel Multi-Stage Borewell Submersible Pump Set | High-Head 350m & 60+ m³/hr High-Discharge Three-Phase Deep Well Pump

Description

Specification	Parameter
Brand	Varuna
Series / Model	V6 Series
Product Type	6-Inch Heavy-Duty Multi-Stage Borewell Submersible Pump Set
Borewell Size Compatibility	6 Inch (150 mm) and Larger
Power Supply	Three-Phase (380V – 415V, 50 Hz Wide Voltage)
Motor Speed	~2850 to 2900 RPM (2-Pole High-Speed Motor)
Protection Rating	IP68 (Fully Submersible)
Total Head Range	Up to 350+ Meters
Discharge Capacity	Up to 60 + m³/hr
Casing & Shaft Material	Stainless Steel (AISI 304 / 316 / 431) & Cast Iron (IS 210 FG 260)
Impeller Options	Precision-Molded Noryl, Stainless Steel, or Cast Bronze
Thrust Bearing System	Heavy-Duty Water/Oil-Lubricated Thrust Bearings
Best Used For	Large Farm Irrigation, Municipal Water Supply, Industrial Plants & Deep-Aquifer Extraction

Heavy-Duty 6-Inch (150mm) Profile: Engineered specifically for 6-inch and larger borewells, maximizing volumetric discharge up to 60 + m³/hr for large-scale operations.
Corrosion-Proof Heavy-Gauge Construction: Fabricated with AISI 304/316 stainless steel casings, heavy cast iron suction/delivery heads, and an AISI 431/304 shaft for long underwater service life.
Extreme 350+ Meter Multi-Stage Head Lift: Multi-stage hydraulic stacking delivers massive pressure capability up to 350+ meters for deep-aquifer extraction and high-elevation boosting.
Sand-Handling Impeller Architecture: Precision-engineered radial and mixed-flow impellers handle abrasive suspended sand particles smoothly to prevent premature wear and mechanical seizing.
Heavy-Duty Thrust Bearing & Built-in NRV: Integrated with a heavy-duty thrust bearing system to manage downward hydraulic loads and an internal non-return valve to eliminate backflow shocks across installations in Nepal.
