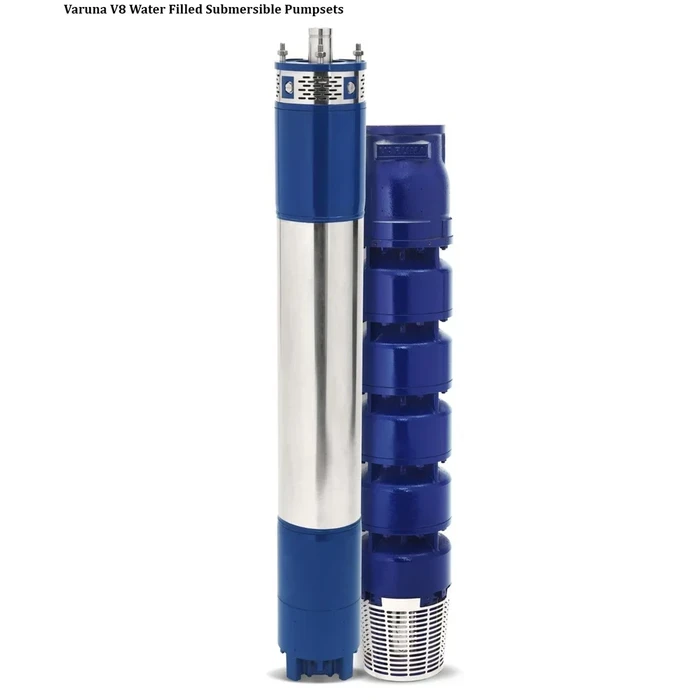

Varuna V8 Series 8" Heavy-Duty Stainless Steel Multi-Stage Borewell Submersible Pump Set | High-Head 400m & 120+ m³/hr High-Discharge Three-Phase Deep Well Pump

Description

Specification	Parameter
Brand	Varuna
Series / Model	V8 Series
Product Type	8-Inch Heavy-Duty Multi-Stage Borewell Submersible Pump Set
Borewell Size Compatibility	8 Inch (200 mm) and Larger
Power Supply	Three-Phase (380V – 415V, 50 Hz Wide Voltage Design)
Operating Speed	~2850 to 2900 RPM (2-Pole High-Speed Motor)
Protection Rating	IP68 (Fully Submersible)
Total Head Range	Up to 400+ Meters
Discharge Capacity	Up to 120+ $m^3/hr$
Casing & Shaft Material	Stainless Steel (AISI 304 / 316 / 431) & Cast Iron (IS 210 FG 260)
Impeller Options	Precision-Cast Bronze, Stainless Steel, or High-Strength Noryl
Thrust Bearing System	Oversized Heavy-Duty Water/Oil-Lubricated Thrust Bearings
Best Used For	Large-Scale Irrigation, Municipal Water Supply Schemes, Mining Dewatering & Deep Industrial Borewells

Massive 8-Inch (200mm) High-Capacity Profile: Engineered specifically for 8-inch and larger borewells, maximizing volumetric water delivery up to 120+ $m^3/hr$ for large-scale operations.
Corrosion-Proof Heavy-Gauge Construction: Fabricated with AISI 304/316 stainless steel casings, heavy cast iron/stainless suction and delivery casings, and an AISI 431/304 shaft for long underwater service life.
Extreme 400+ Meter Multi-Stage Head Lift: Multi-stage hydraulic stacking delivers massive pressure capability reaching up to 400+ meters for deep-aquifer extraction and high-elevation boosting.
Sand-Handling Impeller Architecture: Precision-engineered bronze, stainless steel, or high-strength Noryl mixed-flow and radial impellers handle abrasive suspended sand particles smoothly to prevent seizing.
Oversized Thrust Bearing & Built-in NRV: Integrated with a heavy-duty thrust bearing assembly to manage severe downward hydraulic loads and an internal non-return valve to eliminate backflow shocks across installations in Nepal.
