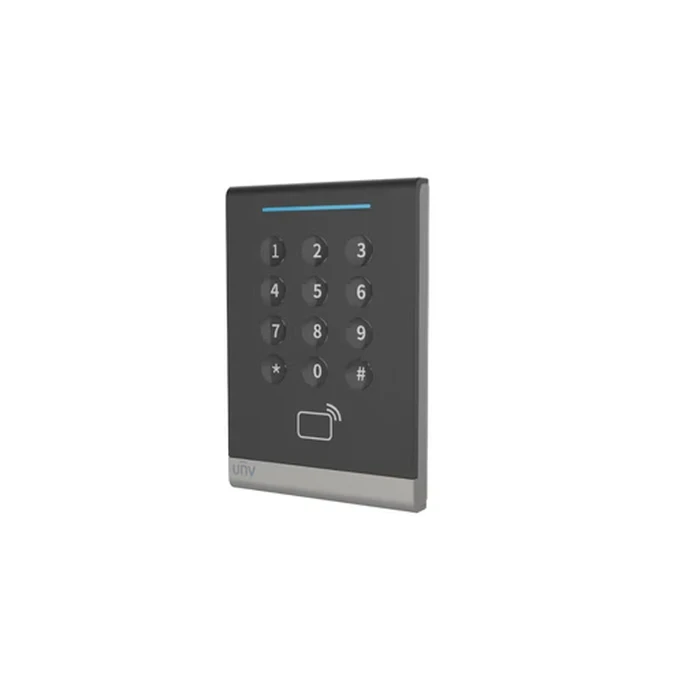

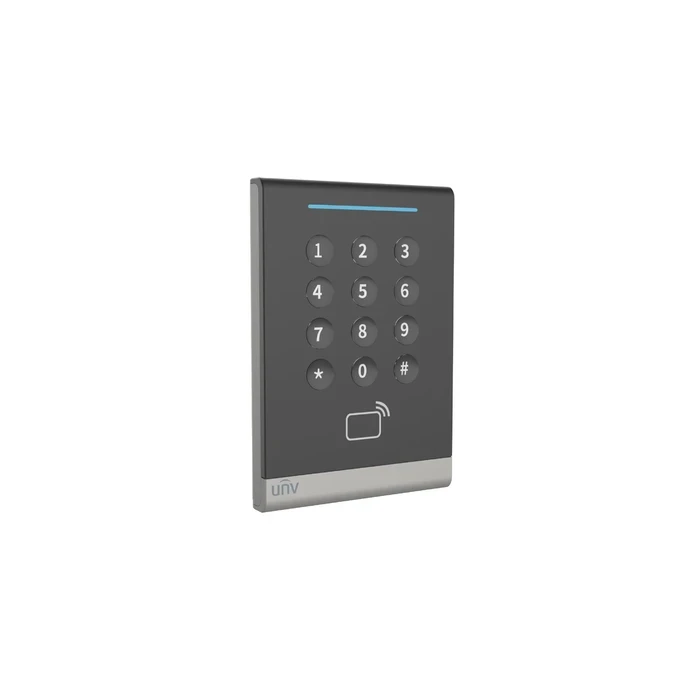

UNV Wall Mount Mifare 13.56MHz Card Reader with Keypad, Wiegand & RS485 Interfaces, IP65 Weatherproofing & Built-in Buzzer | Model No. OEC-R3H-MK
| Specification : | |
| Brand Profile | Uniview (UNV) |
| Model Code | OEC-R3H-MK |
| Product Category | Wall Mount Mifare Card Reader with Keypad |
| Authentication Modes | Card, Password, Card + Password |
| Operating Frequency & Standards | 13.56 MHz / ISO 14443-A, ISO 14443-B, Mifare Card |
| Reading Distance & Time | Max. 5 cm / < 1 Second |
| Communication Interfaces | Wiegand 26/34, RS485 |
| Ingress Protection Rating | IP65 Weatherproof |
| Chassis Material | Polycarbonate (PC) |
| Status Indicators & Audio | 3-Color LED (Blue: Normal, Green: Pass, Red: Fail) + Built-in Buzzer |
| Operating Voltage & Current | DC 12V ± 25% / 72 mA |
| Power Consumption | 0.864 W |
| Mounting Compatibility | Fits 86 x 86 mm and 115 x 73 mm Standard Junction Boxes |
| Operating Temperature & Humidity | -30°C to 65°C / 10% to 90% RH |
| Dimensions & Weight | 129 mm × 88 mm × 21 mm / 145 g |
| Ideal Applications | High-Security Commercial Entrances, Server Rooms, Offices, and Time-Attendance |
-
Dual Card & PIN Authentication: Supports IC card reading (under 1 second at 5 cm) alongside PIN code entries for multi-factor security verification.
-
ISO 14443-A & ISO 14443-B Standards: Operates on the 13.56 MHz frequency with broad support for ISO 14443-A and ISO 14443-B Mifare smart cards.
-
Dual Wiegand & RS485 Interfaces: Outfitted with Wiegand (26/34-bit) and RS485 communication protocols for flexible integration with access controllers.
-
IP65 Weatherproof & Built-In Buzzer: Encased in a durable PC enclosure rated IP65 for indoor/outdoor use (-30°C to 65°C), complete with an audible buzzer and 3-color status LED.
-
Low Power & Standard Junction Mount: Operates at 0.864W on DC 12V, designed to mount directly to standard 86 x 86 mm and 115 x 73 mm junction boxes.
