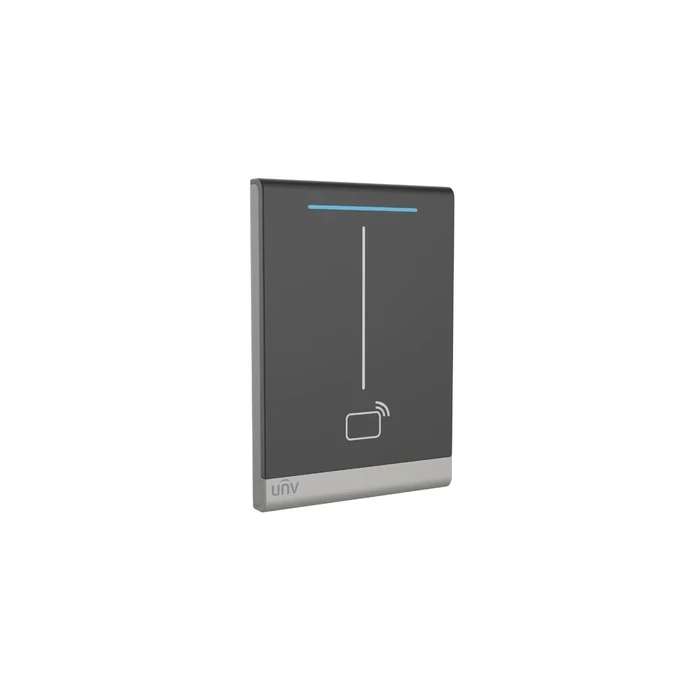

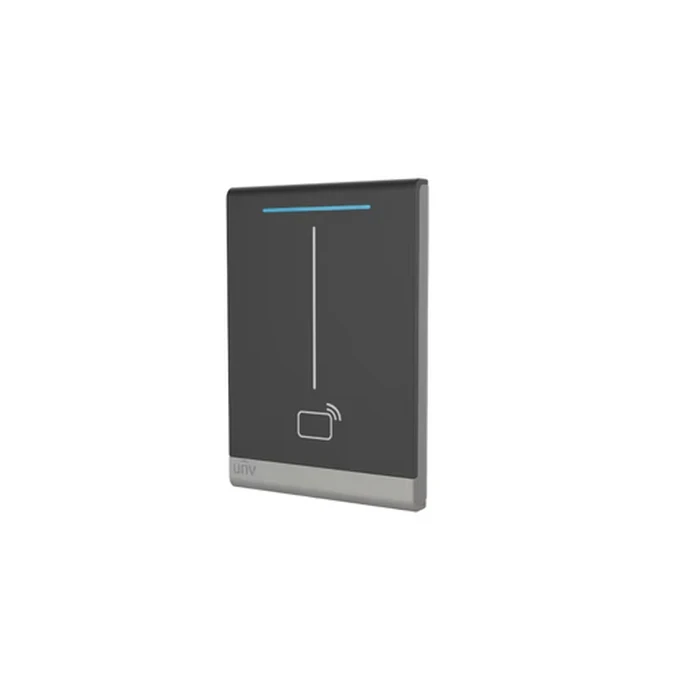

UNV Wall Mount Mifare 13.56MHz Card Reader with Wiegand & RS485 Interfaces, IP65 Weatherproofing & LED Status Light | Model No. OEC-R3H-M
| Specification : | |
| Brand Profile | Uniview (UNV) |
| Model Code | OEC-R3H-M |
| Product Category | Wall Mount Mifare Card Reader |
| Operating Frequency & Card Type | 13.56 MHz / Mifare Smart Card |
| Reading Distance & Time | Max. 5 cm / < 1 Second |
| Communication Interfaces | Wiegand 26/34, RS485 |
| Ingress Protection Rating | IP65 Weatherproof |
| Chassis Material | Polycarbonate (PC) |
| Status Indicator | 3-Color LED Light (Blue: Normal, Green: Pass, Red: Fail) |
| Operating Voltage & Current | DC 12V ± 25% / 61 mA |
| Power Consumption | 0.732 W |
| Mounting Compatibility | Fits 86 x 86 mm and 115 x 73 mm Standard Junction Boxes |
| Operating Temperature & Humidity | -30°C to 65°C / 10% to 90% RH |
| Dimensions & Weight | 129 mm × 88 mm × 21 mm / 134 g |
| Ideal Applications | Commercial Offices, Industrial Security Gates, Apartment Entrances, and Secured Rooms |
-
13.56 MHz Mifare Smart Card Authentication: Reads Mifare IC cards in less than 1 second at a distance of up to 5 cm for contactless door access.
-
Dual Wiegand & RS485 Communication Interfaces: Supports Wiegand (26/34-bit) and RS485 protocols for wide compatibility with access controllers.
-
IP65 Weatherproof & Rugged PC Housing: Encased in a durable PC enclosure rated IP65, built to endure harsh indoor and outdoor environments from -30°C to 65°C.
-
3-Color LED Status Indicator: Features intuitive visual status feedback (Blue for idle operation, Green for successful access, Red for denied access).
-
Standard Junction Box Mount & Low Power Consumption: Designed to fit standard 86x86 mm and 115x73 mm junction boxes, operating at an ultra-low power consumption of 0.732W (DC 12V).
